Vehicle Exploded View - VESPA VESPA GTS 300 VESPA GTS 300 ABS E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

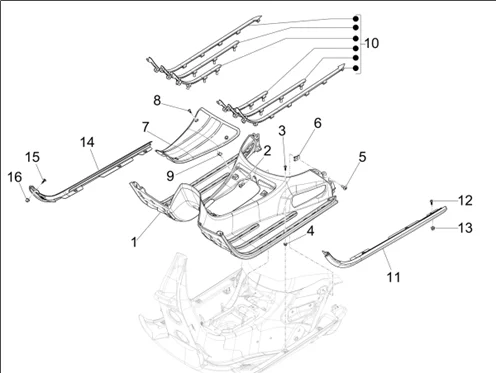

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1182/VESPA_GTS_300_ABS_E5_2022_(EMEA)_02.31.png)
1 |
1B009618000A11 - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B009618000B04 - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B009618000HQ - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B009618000NV - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B009618000V03 - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B009618000DY - FOOTRES More informationQuantity required : 1 |
||||||
|
1 |
1B009618000G22 - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B009618000G23 - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B009618000Q01 - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B009618000VK - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B009618000XN2 - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B009618000R7 - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B00961800090 - FOOTREST More informationQuantity required : 1 |
||||||
|
1 |
1B009618 - FOOTREST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/9/img/73359.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
4 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
5 |
CM179302 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
7 |
|
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
9 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/9/8/img/200898.jpg)
10 |
1B0106310000C - FLOORBOARD STRIPS GROUP More informationQuantity required : 1 |
||||||
|
10 |
1B010631000G30 - FLOORBOARD STRIPS GROUP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/0/2/img/200902.jpg)
11 |
1B00964600090 - LEFT EDGE FOOTREST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/0/0/img/200900.jpg)
11 |
1B009646000G24 - LEFT EDGE FOOTREST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/0/1/img/200901.jpg)
11 |
1B009646000K1 - LEFT EDGE FOOTREST More informationQuantity required : 1 |
||||||
|
12 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
||||||
|
13 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/0/5/img/200905.jpg)
14 |
1B00964700090 - RIGHT EDGE FOOTREST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/0/3/img/200903.jpg)
14 |
1B009647000G24 - RIGHT EDGE FOOTREST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/9/0/4/img/200904.jpg)
14 |
1B009647000K1 - RIGHT EDGE FOOTREST More informationQuantity required : 1 |
||||||
|
15 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
||||||
|
16 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 5 |
