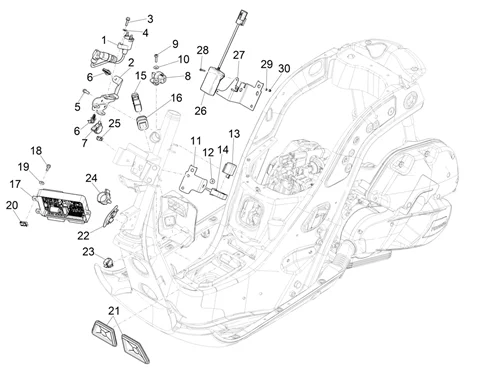

Circuit électrique : 06.06 RÉGULATEURS DE TENSION - CENTRALES ELECTRONIQUES - BOBINE H.T.
Régulateurs de tension - Centrales electroniques - Bobine H.T.
Search
1D001665 - BOBINE H.T.

1
P2R reference P2R reference 140260
Maker reference Maker reference 1D001665

1D001665 - BOBINE H.T.

More information

Quantity required : 1

1A005097 - PATTES

2
P2R reference P2R reference 139584
Maker reference Maker reference 1A005097

1A005097 - PATTES

More information

Quantity required : 1

872269 - VIS

3
P2R reference P2R reference 70425
Maker reference Maker reference 872269

872269 - VIS

More information

Quantity required : 1

012528 - RONDELLE S01252800

4
P2R reference P2R reference 65342
Maker reference Maker reference 0125285

012528 - RONDELLE S01252800

More information

Quantity required : 1

1A003477 - VIS

5
P2R reference P2R reference 139532
Maker reference Maker reference 1A003477

1A003477 - VIS

More information

Quantity required : 2

1D001143 - COLLIER

6
P2R reference P2R reference 127593
Maker reference Maker reference 1D001143

1D001143 - COLLIER

More information

Quantity required : 2

CM006903 - RESSORT

7
P2R reference P2R reference 72905
Maker reference Maker reference CM006903

CM006903 - RESSORT

More information

Quantity required : 1

680212 - SENSOR DE CHUTE

8
P2R reference P2R reference 92167
Maker reference Maker reference 680212

680212 - SENSOR DE CHUTE

More information

Quantity required : 1

SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856-

9
P2R reference P2R reference 65399
Maker reference Maker reference 0158565

SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856-

More information

Quantity required : 1

097733 - RONDELLE

10
P2R reference P2R reference 65682
Maker reference Maker reference 0977335

097733 - RONDELLE

More information

Quantity required : 1

1D000504 - ETRIER

11
P2R reference P2R reference 76217
Maker reference Maker reference 1D000504

1D000504 - ETRIER

More information

Quantity required : 1

969224 - ECROU

12
P2R reference P2R reference 70940
Maker reference Maker reference 969224

969224 - ECROU

More information

Quantity required : 2

680228 - CENTALE CLIGNOTANTE

13
P2R reference P2R reference 92168
Maker reference Maker reference 680228

680228 - CENTALE CLIGNOTANTE

More information

Quantity required : 1

291017 - SUPPORT

14
P2R reference P2R reference 66246
Maker reference Maker reference 291017

291017 - SUPPORT

More information

Quantity required : 1

1D002753 - PRISE USB

15
P2R reference P2R reference 157798
Maker reference Maker reference 1D002753

1D002753 - PRISE USB

More information

Quantity required : 1

USB PORT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1D002258-

15
P2R reference P2R reference 149323
Maker reference Maker reference 1D002258

USB PORT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1D002258-

More information

Quantity required : 1

1B001591 - PASSE CABLES

16
P2R reference P2R reference 75897
Maker reference Maker reference 1B001591

1B001591 - PASSE CABLES

More information

Quantity required : 1

CM295001 - CENTRALE ELECTRONIQUE

17
P2R reference P2R reference 157965
Maker reference Maker reference CM295001

CM295001 - CENTRALE ELECTRONIQUE

More information

Quantity required : 1

CM267108 - CENTRALE ELECTRONIQUE

17
P2R reference P2R reference 142615
Maker reference Maker reference CM267108

CM267108 - CENTRALE ELECTRONIQUE

More information

Quantity required : 1

830061 - VIS

18
P2R reference P2R reference 68890
Maker reference Maker reference 830061

830061 - VIS

More information

Quantity required : 3

097733 - RONDELLE

19
P2R reference P2R reference 65682
Maker reference Maker reference 0977335

097733 - RONDELLE

More information

Quantity required : 3

248419 - PLAQUETTE PLASTIQUE

20
P2R reference P2R reference 65998
Maker reference Maker reference 248419

248419 - PLAQUETTE PLASTIQUE

More information

Quantity required : 3

1B003958 - PROTECTION

21
P2R reference P2R reference 140078
Maker reference Maker reference 1B003958

1B003958 - PROTECTION

More information

Quantity required : 2

1B003939 - PROTECTION CHASSIS

22
P2R reference P2R reference 140073
Maker reference Maker reference 1B003939

1B003939 - PROTECTION CHASSIS

More information

Quantity required : 1

CM013202 - RESSORT

23
P2R reference P2R reference 72918
Maker reference Maker reference CM013202

CM013202 - RESSORT

More information

Quantity required : 1

CM006907 - RESSOT

24
P2R reference P2R reference 95046
Maker reference Maker reference CM006907

CM006907 - RESSOT

More information

Quantity required : 1

231590 - CLIPS

25
P2R reference P2R reference 65967
Maker reference Maker reference 231590

231590 - CLIPS

More information

Quantity required : 1

2D0005355 - MULTIMEDIA PLATFORM + HERE LICENSE

26
P2R reference P2R reference 163957
Maker reference Maker reference 2D0005355

2D0005355 - MULTIMEDIA PLATFORM + HERE LICENSE

More information

Quantity required : 1

1B006789 - BRIDE

27
P2R reference P2R reference 157966
Maker reference Maker reference 1B006789

1B006789 - BRIDE

More information

Quantity required : 1

615795 - VIS

28
P2R reference P2R reference 110679
Maker reference Maker reference 615795

615795 - VIS

More information

Quantity required : 2

013836 - RONDELLE S01383600

29
P2R reference P2R reference 65363
Maker reference Maker reference 0138365

013836 - RONDELLE S01383600

More information

Quantity required : 2

B005195 - ECROU

30
P2R reference P2R reference 110653
Maker reference Maker reference B005195

B005195 - ECROU

More information

Quantity required : 2
