Vehicle Exploded View - VESPA VESPA GTS 125 E4 ABS 4T Super 2018-2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

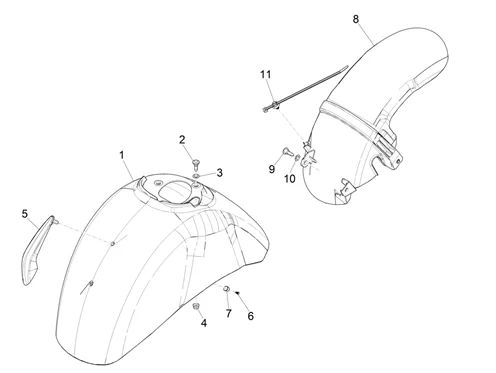

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/844/Vespa_GTS_125_E4_ABS_4T_Super_2018-2019_(EMEA)_02.33.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/1/6/img/87216.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2007> BLACK 98/A -65102900XN2 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/9/3/1/img/157931.jpg)
1 |
65102900HT - GARDE BOUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/1/3/img/87213.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2007> RED 894 -65102900R7 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/4/4/9/img/140449.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2007> BLACK 94 -6510295090 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/8/4/img/87184.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2006> RAW TO BE PAINTED -651029 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/9/2/img/87192.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2008> WHITE 544 -65102900BR More informationQuantity required : 1 |
|||||||||
1 |
65102900LD - GARDE BOUE AVANT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/9/3/3/img/157933.jpg)
1 |
65102900D03 - GARDE-BOUE AVANT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/4/4/2/img/140442.jpg)
1 |
65102900HQ - GARDE-BOUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/1/5/img/86815.jpg)
2 |
648294 - VIS More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
3 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
4 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/9/6/img/156096.jpg)
5 |
1B005785 - CRETE GARDE-BOUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
6 |
SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/7/2/img/75172.jpg)
7 |
CAP FOR MUDGUARD "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS VESPA -192598 More informationQuantity required : 2 |
|||||||||
|
8 |
1B011653 - GARDE-BOUE AR. More informationQuantity required : 1 |
|||||||||
|
8 |
1B003707 - GARDE-BOUE AR. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
9 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 1 |
|||||||||
|
10 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
11 |
1D001143 - COLLIER More informationQuantity required : 1 |
|||||||||
