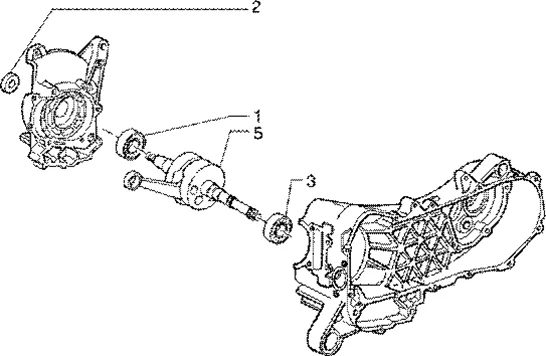

Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005 VESPA

Moteur : T3 VILEBREQUIN
Vilebrequin
Search
CRANKSHAFT BEARING (ON IGNTION SIDE) (17x42x13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 stroke -56925R-

1
P2R reference P2R reference 70950
Maker reference Maker reference 96925R

CRANKSHAFT BEARING (ON IGNTION SIDE) (17X42X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE -56925R-

More information

Quantity required : 1
SEAL RING GASKET- FOR CRANKSHAFT (17x28x07) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 stroke-969028-

2
P2R reference P2R reference 70928
Maker reference Maker reference 969028

SEAL RING GASKET- FOR CRANKSHAFT (17X28X07) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE-969028-

More information

Quantity required : 1
CRANKSHAFT BEARING "PIAGGIO GENUINE PART" PIAGGIO 50 4 stroke (left side) -82671R-

3
P2R reference P2R reference 68612
Maker reference Maker reference 82671R

CRANKSHAFT BEARING "PIAGGIO GENUINE PART" PIAGGIO 50 4 STROKE (LEFT SIDE) -82671R-

More information

Quantity required : 1
969381 - ROULEMENT

3
P2R reference P2R reference 70971
Maker reference Maker reference 969381

969381 - ROULEMENT

More information

Quantity required : 1
969203 - VILEBREQUIN

5
P2R reference P2R reference 70933
Maker reference Maker reference 969203

969203 - VILEBREQUIN

More information

Quantity required : 1
CRANKSHAFT "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 stroke -969428-

5
P2R reference P2R reference 70978
Maker reference Maker reference 969428

CRANKSHAFT "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE -969428-

More information

Quantity required : 1

All the exploded views of this vehicle
