Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

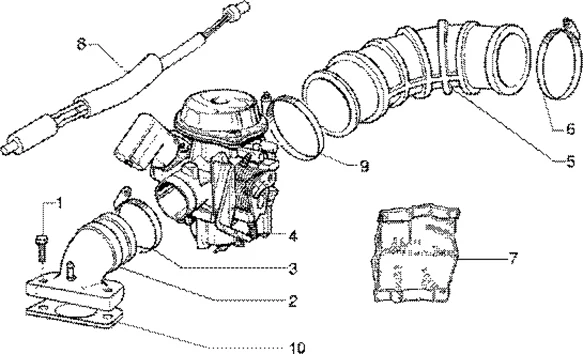

Moteur : T16 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T16.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
1 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE ET MAXISCOOTER 125 CC -CM147102- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
1 |
031091 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/7/5/img/70975.jpg)
2 |
INTAKE MANIFOLD "PIAGGIO GENUINE PART" 50 LIBERTY 4 STROKE, ZIP 4 STROKE, VESPA ET 4 STROKE 1998>2004/APRILIA 50 SCARABEO 4 STROKE 2002>2009 -969405- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
3 |
1A000833 - COLLIER More informationQuantity required : 1 |
||||||
3 |
828825 - EMULSEUR More informationQuantity required : 1 |
||||||
|
4 |
CM141901 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
5 |
CM142701 - POINTEAU More informationQuantity required : 1 |
||||||
|
5 |
969327 - MANCHON More informationQuantity required : 1 |
||||||
|
6 |
969628 - BANDE More informationQuantity required : 1 |
||||||
|
6 |
828840 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
6 |
257134 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/0/9/img/66909.jpg)
7 |
FLOAT CHAMBER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50-100 CC 4 STROKE -497038- More informationQuantity required : 1 |
||||||
|
7 |
828841 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/0/img/68780.jpg)
8 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" 50 FLY, VESPA LX, LIBERTY, ZIP 4 STROKE -828832- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/1/img/67261.jpg)
8 |
CARB RESISTOR MODULE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE -582619- More informationQuantity required : 1 |
||||||
|
9 |
1A000833 - COLLIER More informationQuantity required : 1 |
||||||
|
9 |
CM142801 - CUVE CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/2/img/70962.jpg)
10 |
969323 - BAGUE More informationQuantity required : 1 |
||||||
|
10 |
CHOKE CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -828844- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/6/img/73246.jpg)
11 |
SLIDE/DIAPHRAGM "PIAGGIO GENUINE PART" PIAGGIO 50 FLY , LIBERTY ZIP , VESPA LX , VESPA S /APRILIA 50 SPORT-CITY , SCARABEO (ALL MODELS 4 STROKE POWERED -CM146601- More informationQuantity required : 1 |
||||||
|
12 |
828824 - COUVERCLE More informationQuantity required : 1 |
||||||
|
13 |
828839 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
14 |
828838 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/0/9/0/img/96090.jpg)
15 |
PICKUP PUMP ROD "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, VESPA LX 4 STROKE, PRIMAVERA, SPRINT -CM151801- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/1/img/68781.JPG)
16 |
828833 - AXE FLOTTEUR More informationQuantity required : 1 |
||||||
|
17 |
828837 - COUVERCLE More informationQuantity required : 1 |
||||||
|
18 |
828836 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/6/img/68776.jpg)
19 |
NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC 4STROKE + MAXISCOOTER 125 CC -828822- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/8/img/68788.JPG)
20 |
828843 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/0/4/img/73204.jpg)
21 |
CHOKE "PIAGGIO GENUINE PART" 50 4 STROKE LIBERTY, ZIP, VESPA ET4 1998>2005 -CM142901- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/9/img/68779.JPG)
22 |
828830 - RESSORT More informationQuantity required : 1 |
||||||
|
23 |
CM151702 - VIS REG.MINI COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/9/3/img/73193.jpg)
24 |
IDLE JET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE -CM142302- More informationQuantity required : 1 |
