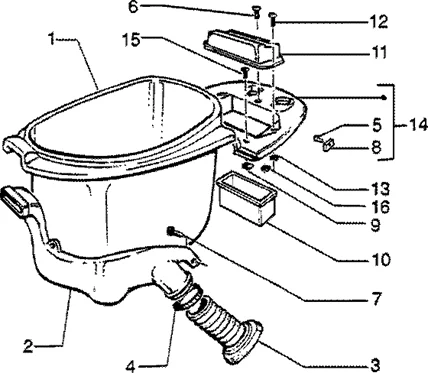

Vehicle Exploded View - VESPA VESPA ET2 50 1998-2005 VESPA

Châssis : T23 PORTE CASQUE
Porte casque
Search
HELMET COMPARTMENT "PIAGGIO GENUINE PART" PIAGGIO 50-125 VESPA LX, VESPA-S -675266-

1
P2R reference P2R reference 91924
Maker reference Maker reference 675266

HELMET COMPARTMENT "PIAGGIO GENUINE PART" PIAGGIO 50-125 VESPA LX, VESPA-S -675266-

More information

Quantity required : 1
573868 - TUBE AIR

2
P2R reference P2R reference 80273
Maker reference Maker reference 573868

573868 - TUBE AIR

More information

Quantity required : 1
298528 - MANCHON

3
P2R reference P2R reference 77987
Maker reference Maker reference 298528

298528 - MANCHON

More information

Quantity required : 1
257134 - COLLIER

4
P2R reference P2R reference 66017
Maker reference Maker reference 257134

257134 - COLLIER

More information

Quantity required : 1
BODY PARTS MOUNTING RIVET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -182302-

5
P2R reference P2R reference 65802
Maker reference Maker reference 182302

BODY PARTS MOUNTING RIVET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -182302-

More information

Quantity required : 1
SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

6
P2R reference P2R reference 66043
Maker reference Maker reference 259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

More information

Quantity required : 1
SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

7
P2R reference P2R reference 66043
Maker reference Maker reference 259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

More information

Quantity required : 1
290405 - SUPPORT

8
P2R reference P2R reference 66242
Maker reference Maker reference 290405

290405 - SUPPORT

More information

Quantity required : 1
NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408-

9
P2R reference P2R reference 72924
Maker reference Maker reference CM017408

NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408-

More information

Quantity required : 2
297369 - COFFRE BATTERIE

10
P2R reference P2R reference 77936
Maker reference Maker reference 297369

297369 - COFFRE BATTERIE

More information

Quantity required : 1
BATTERY COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -576017-

11
P2R reference P2R reference 80740
Maker reference Maker reference 576017

BATTERY COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -576017-

More information

Quantity required : 1
SCREW - 4,2x13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

12
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

More information

Quantity required : 1
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

13
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

More information

Quantity required : 1
BATTERY COVER "PIAGGIO GENUINE PART" 50 VESPA LX 2 stroke 2005, VESPA S 2007> -623019-

14
P2R reference P2R reference 84747
Maker reference Maker reference 623019

BATTERY COVER "PIAGGIO GENUINE PART" 50 VESPA LX 2 STROKE 2005, VESPA S 2007> -623019-

More information

Quantity required : 1
259372 - VIS

15
P2R reference P2R reference 66036
Maker reference Maker reference 259372

259372 - VIS

More information

Quantity required : 2
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

16
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1
