Vehicle Exploded View - VESPA VESPA ET2 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

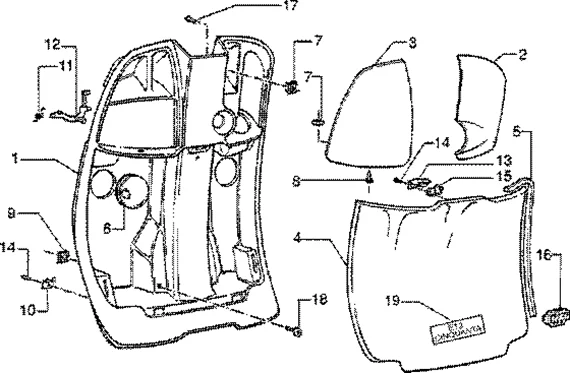

Châssis : T21 COFFRE A L'AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/713/Vespa_ET2_50_1998-2005_T21.PNG)
1 |
CM003603000D - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
CM003603000L - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
CM0036010036 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
CM00360250D1 - COFFRE AVT 251 More informationQuantity required : 1 |
||||||
|
1 |
CM00360100G5 - COFFRE AVT More informationQuantity required : 1 |
||||||
|
1 |
CM00360100V3 - COFFRE AVT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/6/2/img/94962.jpg)
1 |
COUNTER SHIELD "PIAGGIO GENUINE PART" 50 VESPA ET2, 125 VESPA ET4 1998>2004 -CM0036025- More informationQuantity required : 1 |
||||||
|
2 |
57542400M2 - CARENAGE DROIT More informationQuantity required : 1 |
||||||
|
2 |
5754240060 - CARENAGE More informationQuantity required : 1 |
||||||
|
2 |
575424000L - COUVERCLE COFFRE M04 BLEU More informationQuantity required : 1 |
||||||
|
2 |
297277 - COTE COFFRE AV DROIT More informationQuantity required : 1 |
||||||
|
3 |
297276 - COTE COFFRE AV GAUCH More informationQuantity required : 1 |
||||||
|
3 |
575425000L - COUVERCLE COFFRE M04 BLEU More informationQuantity required : 1 |
||||||
|
3 |
5754250060 - CARENAGE More informationQuantity required : 1 |
||||||
|
3 |
57542500M2 - CARENAGE GAUCHE More informationQuantity required : 1 |
||||||
|
4 |
29727400VA - PORTE More informationQuantity required : 1 |
||||||
|
4 |
29727400V3 - ABATTANT More informationQuantity required : 1 |
||||||
|
4 |
29727400G5 - ABATTANT More informationQuantity required : 1 |
||||||
|
4 |
29727400D1 - ABATTANT BLEU 251 More informationQuantity required : 1 |
||||||
|
4 |
2972740090 - PORTE 94 More informationQuantity required : 1 |
||||||
|
4 |
297274000L - ABATTANT More informationQuantity required : 1 |
||||||
|
4 |
297274000D - ABATTANT GRIS M99 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/8/img/66298.jpg)
5 |
FRONT BOOT DOOR GASKET "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, PRIMAVERA, VESPA SPRINT, 125-250-500 X9, BEVERLY -297275- More informationQuantity required : 1 |
||||||
|
6 |
294067 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
7 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
8 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/2/img/66022.jpg)
10 |
DOOR FIXING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -257614- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/3/img/66023.jpg)
11 |
GLOVE BOX OPENING LEVER SPRING "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, VESPA LX -257617- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/1/img/66281.jpg)
12 |
HOOK - FOR FRONT TRAPDOOR "PIAGGIO GENUINE PART" 125 FLY -295528- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/2/img/66002.jpg)
13 |
DOOR CLOSING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -252420- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
14 |
268596 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/9/1/img/67091.jpg)
15 |
TRAPDOOR PLATE "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, VESPA LX -573057- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/8/2/img/80182.jpg)
16 |
573078 - MONOGRAMME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
17 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 - More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
18 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/0/6/4/img/81064.jpg)
19 |
577119 - MONOGRAMME COFFRE ET2 More informationQuantity required : 1 |
