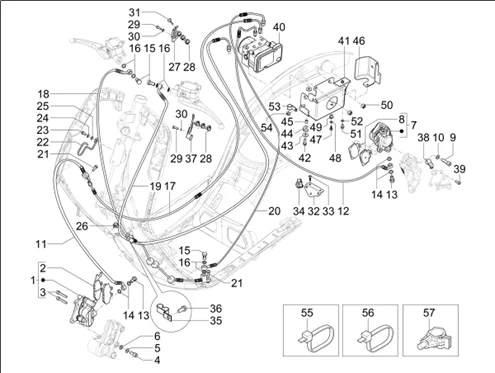

Vehicle Exploded View - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA)

	P2R reference	95578
	Maker reference	CM068320

FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" 125-300 VESPA GTS -CM068320

	P2R reference	90318
	Maker reference	668021

BRAKE PADS - "PIAGGIO GENUINE PART" 125-350-500 X10 FRONTANT GAUCHE, 125-300 VESPA GTS ABS FRONT LEFT (PAIR) -668021

	P2R reference	68396
	Maker reference	666139

BRAKE CALIPER SUPPORT PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -666139

	P2R reference	209432
	Maker reference	1C006239

1C006239 - SCREW TCEI M8X20 8.8

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	63779
	Maker reference	0030585

003058 - RONDELLE S00305800

	P2R reference	187148
	Maker reference	CM294804

CM294804 - ÉTRIER DE FREIN HYDRAULIQUE

	P2R reference	204470
	Maker reference	1C006586

PLAQUETTE DE FREIN ARRIERE ORIGINE PIAGGIO 125-300 VESPA GTS 2007>2022 -1C006586

	P2R reference	178077
	Maker reference	1C004169

1C004169 - SCREW

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	75918
	Maker reference	1C000006

1C000006 - TUYAU

	P2R reference	226789
	Maker reference	1C007553

1C000006 - TUYAU

	P2R reference	209193
	Maker reference	2B011672R

2B011672R - SPECIAL SCREW

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	209193
	Maker reference	2B011672R

2B011672R - SPECIAL SCREW

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	226790
	Maker reference	1C007552

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	75927
	Maker reference	1C000036

1C000036 - CANALIS.

	P2R reference	226791
	Maker reference	1C007551

1C000036 - CANALIS.

	P2R reference	226792
	Maker reference	1C007550

1C007551 - DURIT DE FREIN ARRIERE - UNITE ABS

	P2R reference	70534
	Maker reference	874554

874554 - VIS BRIDE

	P2R reference	75928
	Maker reference	1C000046

1C000046 - CIRCLIPS

	P2R reference	70534
	Maker reference	874554

874554 - VIS BRIDE

	P2R reference	63841
	Maker reference	0069765

006976 - RONDELLE S00697600

	P2R reference	63803
	Maker reference	0061255

006125 - RONDELLE S00612500

	P2R reference	65967
	Maker reference	231590

231590 - CLIPS

	P2R reference	75921
	Maker reference	1C000009

1C000009 - PATTES

	P2R reference	65790
	Maker reference	179013

179013 - RESSORT

	P2R reference	70728
	Maker reference	880285

880285 - VIS

	P2R reference	63840
	Maker reference	0069755

006975 - RONDELLE S00697500

	P2R reference	78036
	Maker reference	299071

299071 - TAMPON

	P2R reference	75516
	Maker reference	1B000263

1B000263 - PLAQUETTE

	P2R reference	96288
	Maker reference	CM179101

CM179101 - VIS

	P2R reference	72907
	Maker reference	CM006905

CM006905 - RESSOT

	P2R reference	68392
	Maker reference	666047

666047 - COLLIER

	P2R reference	70534
	Maker reference	874554

874554 - VIS BRIDE

	P2R reference	75920
	Maker reference	1C000008

1C000008 - PATTES

	P2R reference	69377
	Maker reference	845978

845978 - COLLIER

	P2R reference	70481
	Maker reference	873433

873433 - VIS FIX.

	P2R reference	226793
	Maker reference	1C007258

873433 - VIS FIX.

	P2R reference	226794
	Maker reference	1C007548

1C007258 - CALCULATEUR ABS PLEIN

	P2R reference	65447
	Maker reference	0186395

018639 - VIS

	P2R reference	65793
	Maker reference	179575

179575 - RONDELLE

	P2R reference	70896
	Maker reference	939278

939278 - TAMPON

	P2R reference	76061
	Maker reference	1C000870

1C000870 - ENTRETOISE

	P2R reference	226795
	Maker reference	1C007624

1C000870 - ENTRETOISE

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	63840
	Maker reference	0069755

006975 - RONDELLE S00697500

	P2R reference	109019
	Maker reference	157716

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

	P2R reference	110629
	Maker reference	709052

709052 - ECROU

	P2R reference	68890
	Maker reference	830061

830061 - VIS

	P2R reference	63840
	Maker reference	0069755

006975 - RONDELLE S00697500

	P2R reference	67101
	Maker reference	573918

573918 - COLLIER

	P2R reference	149096
	Maker reference	241936

241936 - ECROU

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298

	P2R reference	66017
	Maker reference	257134

257134 - COLLIER

	P2R reference	72910
	Maker reference	CM006910

CM006910 - RESSORT
