Vehicle Exploded View - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

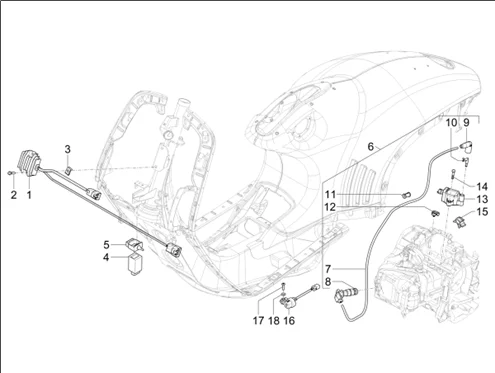

Circuit électrique : 06.06 RÉGULATEURS DE TENSION - CENTRALES ELECTRONIQUES - BOBINE H.T.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1348/Vespa_946_125_E5_12_Anniversary_2025_EMEA_06.06.png)
1 |
1A016315R - REGULATEUR DE TENSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
4 |
680175 - CENTALE CLIGNOTANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/6/img/66246.jpg)
5 |
291017 - SUPPORT More informationQuantity required : 1 |
||||||
|
6 |
6801454 - CABLE H.T. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
7 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/4/4/img/86344.jpg)
8 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" 125 FLY, VESPA LX, PRIMAVERA, VESPA-S, SPRINT, LIBERTY (3 VALVES ENGINE) -642200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/0/3/img/67903.jpg)
9 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER 125 CC -641040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/2/img/67942.jpg)
10 |
INSULATION SHELL FOR SPARK PLUG CAP "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 125CC -6417256 More informationQuantity required : 1 |
||||||
|
11 |
1A010795 - PASSE CABLE More informationQuantity required : 1 |
||||||
|
12 |
641764 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/7/img/67947.jpg)
13 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 FLY3 VALVES, LIBERTY 3 VALVES, VESPA LX 3 VALVES, 125-350 YOURBAN, BEVERLY, X-10 -641901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
14 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 2 |
||||||
|
15 |
D9004464092 - COLLIER More informationQuantity required : 1 |
||||||
|
16 |
D9004464092 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
17 |
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
18 |
097733 - RONDELLE More informationQuantity required : 1 |
