Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Racer 750 2011 USA 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

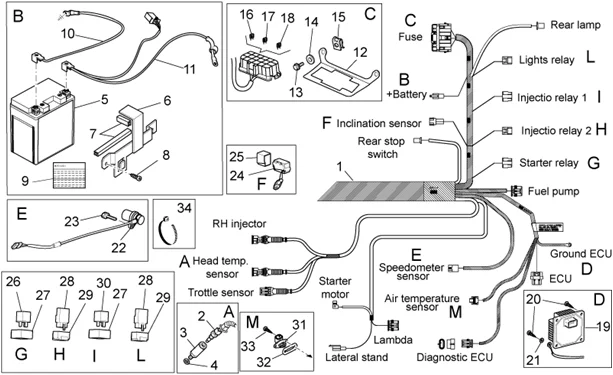

Chassis : 33.31 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/535/V7_Racer_750_2011_USA_2012_33.31.PNG)
1 |
883077 - CABLAGGIO PRINCIPALE V7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
2 |
SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/1/1/img/102511.jpg)
3 |
GU03163330 - SUPPORTO SENSORE More informationQuantity required : 1 |
||||||
|
4 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/7/img/67807.jpg)
5 |
BATTERY 12V 12 AH YTX14-BS YUASA - MAINTENANCE FREE+ ACID PACK "PIAGGIO GENUINE PART" -638733 More informationQuantity required : 1 |
||||||
|
5 |
640201 - BATTERIE 12V -12AH YUASA YTX14AHL-BS More informationQuantity required : 1 |
||||||
|
6 |
883698 - STAFFA FISSAGGIO BATTERIA More informationQuantity required : 1 |
||||||
|
6 |
GU32418210 - BRIDE More informationQuantity required : 1 |
||||||
|
7 |
890517 - JOINT CONVOYEUR G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
8 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 2 |
||||||
|
9 |
GU32517710 - VIS More informationQuantity required : 1 |
||||||
|
10 |
GU32747910 - CABLAGE MASSE-BATTERIE More informationQuantity required : 1 |
||||||
|
11 |
883191 - CABLAGGIO RICARICA More informationQuantity required : 1 |
||||||
|
11 |
883778 - CABLAGE More informationQuantity required : 1 |
||||||
|
12 |
883161 - STAFFA FISSAGGIO SCATOLA FUSIBILI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
13 |
GU98682212 - VIS M5X12 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
14 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
15 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
16 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860 More informationQuantity required : 3 |
||||||
|
17 |
AP8127346 - FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
18 |
CM225730 - FUSIBLE More informationQuantity required : 2 |
||||||
|
19 |
883798 - CENTRALINA INIEZ.ELETTR. 750 More informationQuantity required : 1 |
||||||
|
19 |
CM2271024 - CENTRALINA ELETTR JP 750 More informationQuantity required : 1 |
||||||
|
20 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 4 |
||||||
|
21 |
GU95129101 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/7/img/71567.jpg)
22 |
SENSOR FOR SPEEDOMETER "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 500 SCARABEO, 500 ATLANTIC, 250 RS, 1000 RSV-2, RSV-4, TUONO, FALCO -AP8124528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
23 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.jpg)
24 |
584509 - SENSOR DE CHUTE More informationQuantity required : 1 |
||||||
|
25 |
AP8144046 - CAOUTCHOUC DETECT. INCL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/8/img/73458.jpg)
26 |
GU29732550 - INTERRUPTEUR BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
27 |
AP8220546 - CAOUTCHOUC SUPPORT RELAIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
28 |
INJECTION RELAY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -895481 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
29 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
30 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.jpg)
31 |
GU30729330 - DETEC.TEMPER.AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/9/img/73459.jpg)
32 |
GU30027931 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
33 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
|
34 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 31 |
||||||
|
34 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 1 |
