Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Racer 750 2011 USA 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

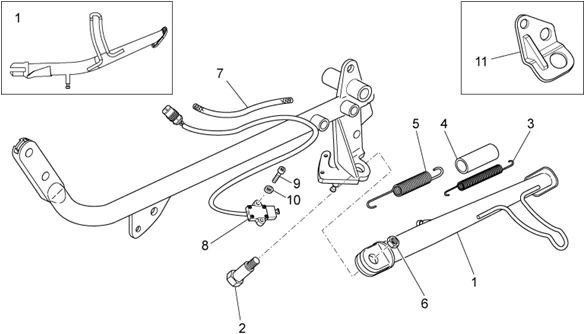

Chassis : 33.03 BÉQUILLE LATÉRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/535/V7_Racer_750_2011_USA_2012_33.03.PNG)
1 |
883471 - CAVALLETTO LATERALE USA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/9/8/1/img/100981.jpg)
1 |
SIDE STAND "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, BREVA, V7 -B063086 More informationQuantity required : 1 |
||||||
|
2 |
AP8121375 - VIS FIX. BEQUILLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/6/img/71476.jpg)
2 |
SCREW - FOR SIDE STAND "PIAGGIO GENUINE PART" MOTO-GUZZI GRISO, NEVADA, NORGE, STELVIO -AP8121607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
3 |
RETURN SPRING FOR STAND (SMALL) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8121014 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
4 |
SIDE STAND SPRING COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8102524 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
5 |
AP8221197 - RESSORT RAPPEL BEQ. More informationQuantity required : 1 |
||||||
|
6 |
GU32433011 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
GU92630310 - ECROU More informationQuantity required : 1 |
||||||
|
7 |
GU00823923140 - GUAINA NERA D16 S0,4 VETR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/7/img/67837.jpg)
8 |
SIDE STAND SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -639542 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/9/8/img/133098.jpg)
9 |
GU98612216 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/9/0/img/132690.jpg)
10 |
GU95020105 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
GU32432711 More informationQuantity required : 1 |
