Vehicle Exploded View - MOTO-GUZZI V11 1100 Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

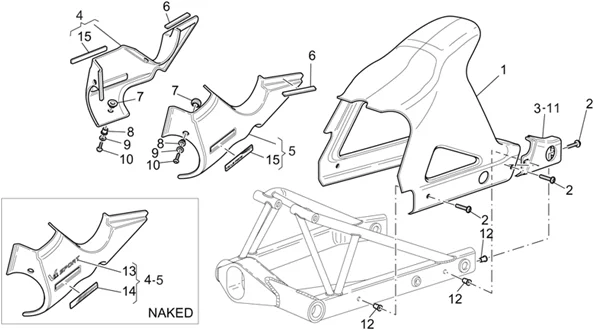

Chassis : 33.30 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/524/V11_Cat_1100_2003-2004_33.30.PNG)
1 |
GU01437030 - PARAFANGO POST. More informationQuantity required : 1 |
||||||
|
2 |
GU98223520 - VIS More informationQuantity required : 6 |
||||||
|
3 |
GU01546363 - COPRIPERNO DX GRIGIO More informationQuantity required : 1 |
||||||
|
4 |
GU01570230 - FIANCATINA DX GREZZO More informationQuantity required : 1 |
||||||
|
4 |
GU01570264 - FIANCATINA DX GRIGIO More informationQuantity required : 1 |
||||||
|
4 |
GU01570265 - FIANCATINA DX NERA More informationQuantity required : 1 |
||||||
|
4 |
GU01570266 - FIANCATA LAT.DX GRIGIO CROMO V11 SPORT More informationQuantity required : 1 |
||||||
|
4 |
|
||||||
|
4 |
GU01570290 - FIANCATINA DX GRIGIO More informationQuantity required : 1 |
||||||
|
4 |
GU01570291 - FIANCATINA DX NERA More informationQuantity required : 1 |
||||||
|
5 |
GU01570490 - FIANCATINA SX GRIGIO More informationQuantity required : 1 |
||||||
|
5 |
GU01570491 - FIANCATINA SX NERA More informationQuantity required : 1 |
||||||
|
5 |
GU01570430 - FIANCATINA SX GREZZO More informationQuantity required : 1 |
||||||
|
5 |
GU01570464 - FIANCATINA SX GRIGIO More informationQuantity required : 1 |
||||||
|
5 |
GU01570465 - FIANCATINA SX NERA More informationQuantity required : 1 |
||||||
|
5 |
GU01570466 - FIANCATA LAT.SX GRIGIO CROMO V11 SPORT More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/7/9/3/img/101793.jpg)
6 |
GU01573960 - SPUGNA More informationQuantity required : 2 |
||||||
|
7 |
GU93180710 - CAOUTCHOUC More informationQuantity required : 6 |
||||||
|
8 |
GU01576131 - BUSSOLA More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/6/5/img/101865.jpg)
9 |
GU01577830 - ROSETTA IN NYLON More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/5/img/73565.jpg)
10 |
GU98370515 - VIS More informationQuantity required : 6 |
||||||
|
11 |
GU01546463 - COPRIPERNO SX GRIGIO More informationQuantity required : 1 |
||||||
|
12 |
GU03742030 - BAGUE More informationQuantity required : 6 |
||||||
|
13 |
GU01575940 - DECALCO "V11 LE MANS" More informationQuantity required : 2 |
||||||
|
13 |
|
||||||
|
14 |
GU01576060 - PLATINE QUADRILLŽE More informationQuantity required : 2 |
||||||
|
15 |
GU01576092 - TARGHETTA V11 LEMANS" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/3/5/img/101835.jpg)
15 |
GU01575962 - DECALCO FIANCATE More informationQuantity required : 2 |
