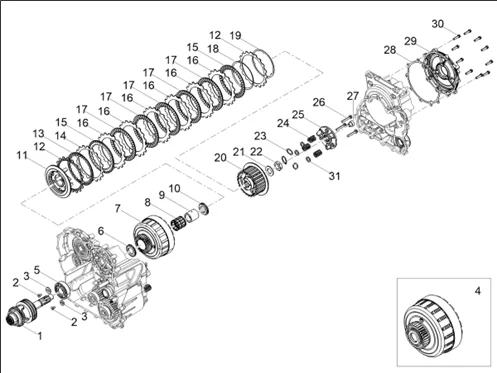

Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello S E5 ABS 2022-2024 (EMEA)

	P2R reference	203625
	Maker reference	1A022926

1A022926 - COMPLETE FLEXIBLE COUPLING

	P2R reference	208560
	Maker reference	1A024356

1A024356 - ACCOUPLEMENT FLEXIBLE

	P2R reference	72638
	Maker reference	B013608

B013608 - VIS

	P2R reference	208546
	Maker reference	2A001454

2A001454 - RONDELLE éVASéE

	P2R reference	220123
	Maker reference	2A001478

2A001478 - CLUTCH ASSEMBLY

	P2R reference	208561
	Maker reference	1A026316

1A026316 - EMBRAYAGE CPL.

	P2R reference	43016
	Maker reference	898634

898634 - ROULEMENT

	P2R reference	220124
	Maker reference	B018628

B018628 - RONDELLE ENTRETOISE

	P2R reference	208562
	Maker reference	1A024353

1A024353 - RONDELLE ENTRETOISE

	P2R reference	220125
	Maker reference	2A001369

2A001369 - CLOCHE EMBRAYAGE

	P2R reference	208563
	Maker reference	1A026315

1A026315 - CLOCHE EMBRAYAGE

	P2R reference	43314
	Maker reference	974361

974361 - CAGE A AIGUILLE 35X40X35,8

	P2R reference	208564
	Maker reference	1A024352

1A024352 - CAGE A ROULEAUX

	P2R reference	220126
	Maker reference	2A001379

2A001379 - ENTRETOISE

	P2R reference	208565
	Maker reference	1A024351

1A024351 - ENTRETOISE

	P2R reference	220127
	Maker reference	1A024472

1A024472 - ENTRETOISE

	P2R reference	208566
	Maker reference	1A025865

1A025865 - ENTRETOISE

	P2R reference	220128
	Maker reference	2A001393

2A001393 - PLATEAU D'EMBRAYAGE

	P2R reference	208567
	Maker reference	1A025861

1A025861 - PLATEAU D'EMBRAYAGE

	P2R reference	208568
	Maker reference	2A001395

2A001395 - DISQUE EMBR.MENé

	P2R reference	208569
	Maker reference	2A001399

2A001399 - DISQUE EMBR.MENANT

	P2R reference	208570
	Maker reference	2A001396

2A001396 - DISQUE EMBR.MENé

	P2R reference	208571
	Maker reference	2A001392

2A001392 - DISQUE EMBR.MENANT

	P2R reference	208572
	Maker reference	2A001397

2A001397 - DISQUE EMBR.MENé

	P2R reference	208573
	Maker reference	2A001398

2A001398 - DISQUE EMBR.MENANT

	P2R reference	208574
	Maker reference	2A001446

2A001446 - RESSORT A GODET

	P2R reference	208575
	Maker reference	2A001445

2A001445 - ENTRETOISE

	P2R reference	220129
	Maker reference	2A001394

2A001394 - MOYEU EMBRAYAGE

	P2R reference	208576
	Maker reference	1A025862

1A025862 - MOYEU EMBRAYAGE

	P2R reference	220130
	Maker reference	2A001381

2A001381 - RONDELLE D'EPAULEMENT

	P2R reference	208577
	Maker reference	2A001266

2A001266 - RONDELLE D'éPAULEMENT

	P2R reference	208578
	Maker reference	2A001278

2A001278 - ÉCROU HEXAGONAL

	P2R reference	208579
	Maker reference	2A001300

2A001300 - SUPPORT RESSORT A LAMES

	P2R reference	220131
	Maker reference	2A001336

2A001336 - RESSORT

	P2R reference	208580
	Maker reference	1A026493

1A026493 - RESSORT

	P2R reference	220132
	Maker reference	2A001368

2A001368 - DISQUE

	P2R reference	208581
	Maker reference	1A025859

1A025859 - PLATEAU D'EMBRAYAGE

	P2R reference	220133
	Maker reference	2A001298

2A001298 - VIS TE BRIDEE M6X40

	P2R reference	208582
	Maker reference	1A025864

1A025864 - FLANGE HEAD SCREW

	P2R reference	220134
	Maker reference	2A001233

2A001233 - PIN FOR PREASSURE PLATE

	P2R reference	208583
	Maker reference	1A024339

1A024339 - PIN FOR PREASSURE PLATE

	P2R reference	208584
	Maker reference	1A025092

1A025092 - JOINT COUVERCLE EMBRAYAGE

	P2R reference	220135
	Maker reference	1A024547

1A024547 - COUVERCLE EMBRAYAGE

	P2R reference	216335
	Maker reference	1A025799

1A025799 - COUVERCLE EMBRAYAGE

	P2R reference	41402
	Maker reference	874549

874549 - VIS BRIDE

	P2R reference	220136
	Maker reference	1A024433

1A024433 - ENTRETOISE

	P2R reference	208586
	Maker reference	1A026431

1A026431 - GODET DE RESSORT
