Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello S E5 ABS 2022-2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

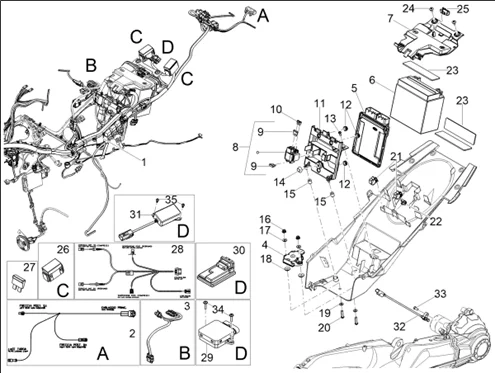

Dispositifs électriques : 11.03 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1309/V100_Mandello_S_E5_ABS_2022-2024_(EMEA)_11.03.png)
1 |
2D000755 - MAIN HARNESS More informationQuantity required : 1 |
|||||||||
|
2 |
2D000761 - REAR LAMP WIRE HARNESS More informationQuantity required : 1 |
|||||||||
|
3 |
2D000757 - FUEL PUMP WIRING HARNESS More informationQuantity required : 1 |
|||||||||
|
4 |
2D000713 - 6 AXIS INERTIAL MEASUREMENT UNIT More informationQuantity required : 1 |
|||||||||
|
5 |
CM3018174 - ELECTRONIC CONTROL UNIT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/7/img/67807.jpg)
6 |
BATTERY 12V 12 AH YTX14-BS YUASA - MAINTENANCE FREE+ ACID PACK "PIAGGIO GENUINE PART" -638733- More informationQuantity required : 1 |
|||||||||
|
7 |
2B010020 - BATTERY COVER More informationQuantity required : 1 |
|||||||||
|
8 |
582690 - RELAIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
9 |
CM225730 - FUSIBLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/6/img/67226.jpg)
10 |
581596 - VIS More informationQuantity required : 2 |
|||||||||
|
11 |
2B010019 - ECU HOUSING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/8/img/56838.jpg)
12 |
AP8220186 - CAOUTCHOUC More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
13 |
AP8150509 - VIS TARAUD 5X14 More informationQuantity required : 1 |
|||||||||
|
14 |
890760 - SUPPORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/4/img/71414.jpg)
15 |
RUBBER SPACER FOR FUEL CAP "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2018> -AP8120712 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/6/img/71776.jpg)
17 |
AP8144662 - JOINT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
18 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
19 |
AP8150015 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/6/img/50956.jpg)
20 |
AP8152128 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
21 |
CM013202 - RESSORT More informationQuantity required : 2 |
|||||||||
|
22 |
1D000129 - JOINT More informationQuantity required : 1 |
|||||||||
|
23 |
AP8144552 - GOMMA LAT. APPOGGIO BATTERIA More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
24 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500- More informationQuantity required : 2 |
|||||||||
|
25 |
1D002384 - COUVERCLE CONNECTEUR More informationQuantity required : 3 |
|||||||||
|
26 |
894603 - BO?TE A FUSIBLES More informationQuantity required : 2 |
|||||||||
|
27 |
CM225605 - FUSIBLE More informationQuantity required : 4 |
|||||||||
|
27 |
CM225603 - FUSIBILE 3A VIOLA More informationQuantity required : 2 |
|||||||||
|
27 |
CM225610 - More informationQuantity required : 3 |
|||||||||
|
27 |
CM225607 - FUSIBLE More informationQuantity required : 7 |
|||||||||
|
27 |
CM225615 - More informationQuantity required : 2 |
|||||||||
|
27 |
CM225620 - FUSIBLE More informationQuantity required : 2 |
|||||||||
|
28 |
2D000778 - SEMI-ACTIVE SUSPENSION HARNESS# More informationQuantity required : 1 |
|||||||||
|
29 |
2D000687 - TPMS UNIT More informationQuantity required : 1 |
|||||||||
|
30 |
2D000725 - M19500 SUSPENSIONS CONTROL UNIT More informationQuantity required : 1 |
|||||||||
|
31 |
2D000533 - CENTRALE ELECTRONIQUE More informationQuantity required : 1 |
|||||||||
|
32 |
2D000051 - CAPTEUR VITESSE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/2/img/71922.jpg)
33 |
AP8152156 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
34 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/3/8/img/195738.jpg)
35 |
296141 - VIS More informationQuantity required : 2 |
|||||||||
