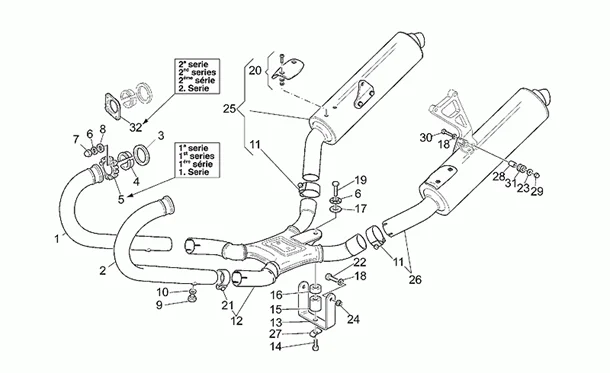

Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Sport-Mandello 1100 1999-2001 (APAC EMEA) MOTO-GUZZI

Moteur : 34.39 GROUPE ECHAPPEMENT
Groupe echappement
Search
GU01120932 - TUBO SCARICO DX

1
P2R reference P2R reference 101461
Maker reference Maker reference GU01120932

GU01120932 - TUBO SCARICO DX

More information

Quantity required : 1

GU01120933 - TUBO SCARICO SX

2
P2R reference P2R reference 101462
Maker reference Maker reference GU01120933

GU01120933 - TUBO SCARICO SX

More information

Quantity required : 1

EXHAUST GASKET- ON HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90718370-

3
P2R reference P2R reference 125501
Maker reference Maker reference GU90718370

EXHAUST GASKET- ON HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90718370-

More information

Quantity required : 2

GU37121205 - ENTRETOISE

4
P2R reference P2R reference 164698
Maker reference Maker reference GU37121205

GU37121205 - ENTRETOISE

More information

Quantity required : 2

GU03121000 - BRIDE

5
P2R reference P2R reference 164699
Maker reference Maker reference GU03121000

GU03121000 - BRIDE

More information

Quantity required : 2

WASHER (8,4x13x0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901-

6
P2R reference P2R reference 73448
Maker reference Maker reference GU14615901

WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901-

More information

Quantity required : 5

GU92781081 - ECROU

7
P2R reference P2R reference 132561
Maker reference Maker reference GU92781081

GU92781081 - ECROU

More information

Quantity required : 4

GU95007208 - RONDELLE

8
P2R reference P2R reference 132678
Maker reference Maker reference GU95007208

GU95007208 - RONDELLE

More information

Quantity required : 4

GU98110007 - BOUCHON

9
P2R reference P2R reference 132940
Maker reference Maker reference GU98110007

GU98110007 - BOUCHON

More information

Quantity required : 2

GU30109330 - JOINT

10
P2R reference P2R reference 130574
Maker reference Maker reference GU30109330

GU30109330 - JOINT

More information

Quantity required : 2

GU01126930 - FASCETTA

11
P2R reference P2R reference 101480
Maker reference Maker reference GU01126930

GU01126930 - FASCETTA

More information

Quantity required : 2

GU01123931 - CAMERA ESPANSIONE

12
P2R reference P2R reference 101477
Maker reference Maker reference GU01123931

GU01123931 - CAMERA ESPANSIONE

More information

Quantity required : 1

GU01123830 - CAVALLOTTO

13
P2R reference P2R reference 101476
Maker reference Maker reference GU01123830

GU01123830 - CAVALLOTTO

More information

Quantity required : 1

GU98054412 - VIS

14
P2R reference P2R reference 141234
Maker reference Maker reference GU98054412

GU98054412 - VIS

More information

Quantity required : 1

GU93233030 - SILENTBLOC

15
P2R reference P2R reference 132596
Maker reference Maker reference GU93233030

GU93233030 - SILENTBLOC

More information

Quantity required : 1

GU30126700 - ENTRETOISE INFERIEUR

16
P2R reference P2R reference 130622
Maker reference Maker reference GU30126700

GU30126700 - ENTRETOISE INFERIEUR

More information

Quantity required : 1

GU30126701 - ENTRETOISE SUPERIEUR

17
P2R reference P2R reference 130623
Maker reference Maker reference GU30126701

GU30126701 - ENTRETOISE SUPERIEUR

More information

Quantity required : 1

GU95100239 - RONDELLE

18
P2R reference P2R reference 132718
Maker reference Maker reference GU95100239

GU95100239 - RONDELLE

More information

Quantity required : 4

GU98054430 - VIS

19
P2R reference P2R reference 164872
Maker reference Maker reference GU98054430

GU98054430 - VIS

More information

Quantity required : 1

GU400086800900 - PROTECT.SILENCIEUX

20
P2R reference P2R reference 131902
Maker reference Maker reference GU400086800900

GU400086800900 - PROTECT.SILENCIEUX

More information

Quantity required : 2

GU01123430 - FASCETTA

21
P2R reference P2R reference 101475
Maker reference Maker reference GU01123430

GU01123430 - FASCETTA

More information

Quantity required : 2

GU98054422 - VIS

22
P2R reference P2R reference 132895
Maker reference Maker reference GU98054422

GU98054422 - VIS

More information

Quantity required : 2

GU95100256 - RONDELLE

23
P2R reference P2R reference 132723
Maker reference Maker reference GU95100256

GU95100256 - RONDELLE

More information

Quantity required : 2

GU92650108 - ECROU

24
P2R reference P2R reference 132530
Maker reference Maker reference GU92650108

GU92650108 - ECROU

More information

Quantity required : 2

GU01123030 - SILENZIATORE DX

25
P2R reference P2R reference 101470
Maker reference Maker reference GU01123030

GU01123030 - SILENZIATORE DX

More information

Quantity required : 1

GU01123042 - SILENZIATORE DX CARB.

25
P2R reference P2R reference 101471
Maker reference Maker reference GU01123042

GU01123042 - SILENZIATORE DX CARB.

More information

Quantity required : 1

GU01122942 - SILENZIATORE SX CARB.

26
P2R reference P2R reference 101467
Maker reference Maker reference GU01122942

GU01122942 - SILENZIATORE SX CARB.

More information

Quantity required : 1

GU01122930 - SILENCIEUX G

26
P2R reference P2R reference 164983
Maker reference Maker reference GU01122930

GU01122930 - SILENCIEUX G

More information

Quantity required : 1

GU95187008 - PLAQUETTE

27
P2R reference P2R reference 132761
Maker reference Maker reference GU95187008

GU95187008 - PLAQUETTE

More information

Quantity required : 2

28
P2R reference P2R reference
Maker reference Maker reference GU911808175

GU92781085 - ECROU BORGNE

29
P2R reference P2R reference 132562
Maker reference Maker reference GU92781085

GU92781085 - ECROU BORGNE

More information

Quantity required : 2

GU98230835 - VIS M8X35

30
P2R reference P2R reference 132983
Maker reference Maker reference GU98230835

GU98230835 - VIS M8X35

More information

Quantity required : 2

GU14103400 - CAOUTCHOUC

31
P2R reference P2R reference 129206
Maker reference Maker reference GU14103400

GU14103400 - CAOUTCHOUC

More information

Quantity required : 2

GU01121030 - FLANGIA

32
P2R reference P2R reference 101465
Maker reference Maker reference GU01121030

GU01121030 - FLANGIA

More information

Quantity required : 2
