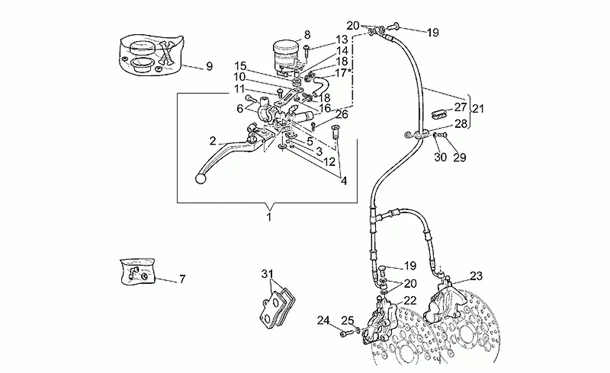

Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Sport-Mandello 1100 1999-2001 (APAC EMEA)

	P2R reference	101930
	Maker reference	GU01660140

FRONT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU01660140-

	P2R reference	165874
	Maker reference	GU01660130

GU01660130 - MAIT.CYL.FREIN AV

	P2R reference	101887
	Maker reference	GU01605630

GU01605630 - LEVA FRENO ANT.GRIGIA

	P2R reference	101888
	Maker reference	GU01605640

GU01605640 - LEVA FRENO ANT.ALLUMINIO LUCIDO

	P2R reference	132450
	Maker reference	GU92295708

GU92295708 - BILLE

	P2R reference	130039
	Maker reference	GU27604815

GU27604815 - PIVOT

	P2R reference	130965
	Maker reference	GU30749860

GU30749860 - MINIRUPTEUR

	P2R reference	101718
	Maker reference	GU01530582

GU01530582 - CAVALLOTTO

	P2R reference	129674
	Maker reference	GU19659500

GU19659500 - GR.REVISION RACCORDDE POMP

	P2R reference	130918
	Maker reference	GU30665000

GU30665000 - RESERV.HUILE FREINS

	P2R reference	130915
	Maker reference	GU30661100

BRAKE FLUID TANK COVER - "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 LE-MANS, STRADA, GT, DAYTONA, 1100 SPORT, V11, CALIFORNIA -GU30661100

	P2R reference	101931
	Maker reference	GU01661460

GU01661460 - SUPPORTO SERBATOIO

	P2R reference	132968
	Maker reference	GU98230613

GU98230613 - VIS

	P2R reference	132457
	Maker reference	GU92601002

GU92601002 - ECROU

	P2R reference	164952
	Maker reference	GU98220620

GU98220620 - VIS

	P2R reference	132308
	Maker reference	GU91180617

GU91180617 - ENTRETOISE

	P2R reference	132370
	Maker reference	GU91551167

GU91551167 - CAOUTCHOUC

	P2R reference	132543
	Maker reference	GU92660604

GU92660604 - ECROU

	P2R reference	101341
	Maker reference	GU00823950050

GU00823950050 - T GOMMA 5X9

	P2R reference	131930
	Maker reference	GU61108500

GU61108500 - COLLIER D9

	P2R reference	132792
	Maker reference	GU95990028

GU95990028 - VIS TUYAU HUILE *

	P2R reference	129949
	Maker reference	GU25656100

GU25656100 - GARNITURE

	P2R reference	157178
	Maker reference	GU01658831

GU01658831 - TUYAU FREIN COMPLETE GRIS

	P2R reference	101921
	Maker reference	GU01652330

GU01652330 - PINZA FRENO ANT.DX ORO

	P2R reference	101920
	Maker reference	GU01652230

GU01652230 - PINZA FRENO ANT.SX ORO

	P2R reference	133144
	Maker reference	GU98623530

GU98623530 - VIS

	P2R reference	71929
	Maker reference	AP8152220

OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220-

	P2R reference	157179
	Maker reference	GU98200214

GU98200214 - VIS

	P2R reference	101923
	Maker reference	GU01658230

GU01658230 - GOMMINO

	P2R reference	101924
	Maker reference	GU01658430

GU01658430 - GUIDACAVO

	P2R reference	132966
	Maker reference	GU98230610

GU98230610 - VIS

	P2R reference	164510
	Maker reference	GU95001206

GU95001206 - RONDELLE

	P2R reference	73417
	Maker reference	GU01654630

BRAKE PADS - "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V-7 FRONT, NEVADA FRONT, BREVA FRONT, 850 GRISO FRONT, BREVA FRONT, 1100 BREVA FRONT, CALIFORNIA FRONT, 1200 GRISO FRONT, NORGE FRONT, STELVIO FRONT, BREVA FRONT (PAIR) -GU01654630-
