Vehicle Exploded View - APRILIA TUONO 1000 V4 R APRC ABS 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

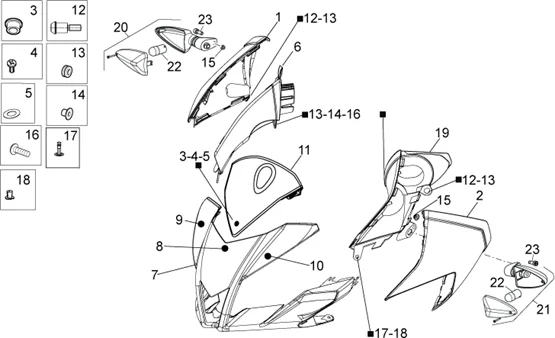

Chassis : 28.09 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/733/Tuono_1000_V4_R_APRC_ABS_2014_28.09.PNG)
1 |
2B002422 - PRISE D'AIR More informationQuantity required : 1 |
||||||
|
2 |
899135 - DUCT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
3 |
AP8144564 - CAOUTCHOUC AVEC INSERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/3/img/67663.jpg)
4 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER + MOTORBIKE -621914 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/2/img/70832.jpg)
5 |
895916 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
2B002422 - PRISE D'AIR More informationQuantity required : 1 |
||||||
|
7 |
2H000184000NI - AVANT CARENAGE, NOIR More informationQuantity required : 1 |
||||||
|
7 |
B04583100NI - AVANT CARENAGE, NOIR More informationQuantity required : 1 |
||||||
|
8 |
B043213 - DECALCO More informationQuantity required : 1 |
||||||
|
9 |
B045785 - DECALCO More informationQuantity required : 1 |
||||||
|
10 |
2H000187 - DECALCO More informationQuantity required : 1 |
||||||
|
10 |
B045786 - DECALCO More informationQuantity required : 1 |
||||||
|
11 |
899133 - VITRE COUPOLE More informationQuantity required : 1 |
||||||
|
11 |
899651 - VITRE COUPOLE More informationQuantity required : 1 |
||||||
|
12 |
899919 - TIGE FILETEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
13 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
14 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
15 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
16 |
AP8152117 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
17 |
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
18 |
AP8144563 - RIVETTO IN PLASTICA MASCHIO More informationQuantity required : 2 |
||||||
|
19 |
2B002421 - PRISE D'AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/3/2/6/img/48326.jpg)
20 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" 50-125 APRILIA RS4 2011>, TUONO, 750 SHIVER, 1000 TUONO, 1200 CAPONORD -AP8127804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/3/2/5/img/48325.jpg)
21 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" 50-125 APRILIA RS4 2011>, TUONO, 750 SHIVER, 1000 TUONO, 1200 CAPONORD -AP8127803 More informationQuantity required : 1 |
||||||
|
22 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
23 |
AP8152108 - VIS More informationQuantity required : 2 |
