Vehicle Exploded View - APRILIA TUONO 1000 V4 R APRC ABS 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

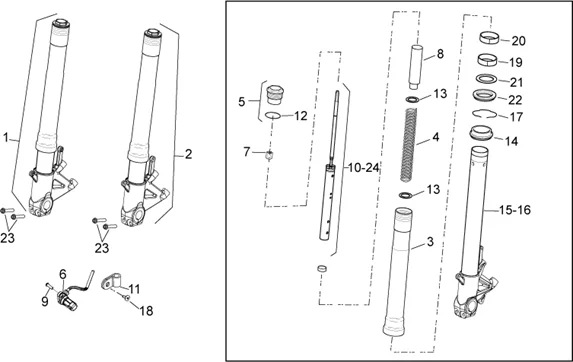

Chassis : 28.06 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/733/Tuono_1000_V4_R_APRC_ABS_2014_28.06.PNG)
1 |
B045220 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
2 |
B045221 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
B043561 - FOURREAU More informationQuantity required : 2 |
||||||
|
4 |
B043562 - RESSORT FOURCHE More informationQuantity required : 2 |
||||||
|
5 |
B043563 - BOUCHON More informationQuantity required : 2 |
||||||
|
5 |
B046351 - GR. BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
6 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
|
6 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
|
7 |
897331 - ECROU More informationQuantity required : 2 |
||||||
|
8 |
B043564 - TUYAU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
9 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267 More informationQuantity required : 3 |
||||||
|
10 |
B046354 - ELEM.POMPAGE G. CPL More informationQuantity required : 1 |
||||||
|
11 |
859777 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
897335 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
13 |
897336 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/1/img/42721.jpg)
14 |
FORK DUST COVER - "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD -897337 More informationQuantity required : 2 |
||||||
|
15 |
B046353 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
16 |
B046355 - TIGE G. More informationQuantity required : 1 |
||||||
|
17 |
897339 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
18 |
AP8201749 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/5/img/42725.jpg)
19 |
897341 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/6/img/42726.jpg)
20 |
897342 - DOUILLE DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
21 |
897343 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/8/img/42728.jpg)
22 |
FORK OIL SEAL "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD -897344 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
23 |
AP8152283 - VIS BRIDE More informationQuantity required : 4 |
||||||
|
24 |
B046352 - ELEM.POMPAGE CPL More informationQuantity required : 1 |
