Vehicle Exploded View - PIAGGIO VU TRACKMASTER ATV 500 Trackmaster 500
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

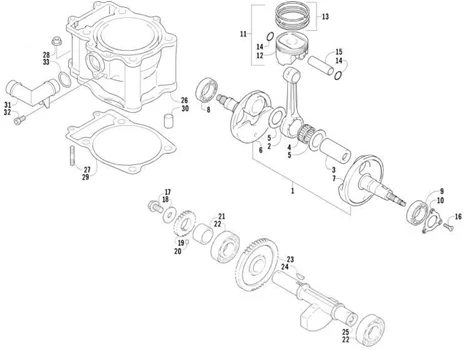

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/338/Trackmaster_500_01.07.PNG)
1 |
629535 - VILEBREQUIN More informationQuantity required : 1 |
||||||
|
2 |
629536 - BIELLE More informationQuantity required : 1 |
||||||
|
3 |
629537 - PIVOT More informationQuantity required : 1 |
||||||
|
4 |
629538 - DOUILLE More informationQuantity required : 1 |
||||||
|
5 |
629539 - RONDELLE More informationQuantity required : 2 |
||||||
|
6 |
629540 - VILEBREQUIN More informationQuantity required : 1 |
||||||
|
7 |
629541 - VILEBREQUIN More informationQuantity required : 1 |
||||||
|
8 |
629542 - DOUILLE More informationQuantity required : 1 |
||||||
|
9 |
629543 - DOUILLE More informationQuantity required : 1 |
||||||
|
10 |
629529 - RETENUE More informationQuantity required : 1 |
||||||
|
11 |
629544 - PISTON SET More informationQuantity required : 1 |
||||||
|
12 |
629545 - PISTON More informationQuantity required : 1 |
||||||
|
13 |
629546 - RING, PISTON SET More informationQuantity required : 1 |
||||||
|
14 |
629547 - JOINT More informationQuantity required : 2 |
||||||
|
15 |
629548 - PIN, PISTON More informationQuantity required : 1 |
||||||
|
16 |
629523 - VIS More informationQuantity required : 3 |
||||||
|
17 |
629569 - BULLONE More informationQuantity required : 1 |
||||||
|
18 |
629568 - RONDELLE More informationQuantity required : 1 |
||||||
|
19 |
629570 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
20 |
629567 - PIVOT More informationQuantity required : 1 |
||||||
|
21 |
629571 - SPACER More informationQuantity required : 1 |
||||||
|
22 |
629572 - DOUILLE More informationQuantity required : 2 |
||||||
|
23 |
629565 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
24 |
629564 - CLAVETTE More informationQuantity required : 1 |
||||||
|
25 |
629573 - BALANCER, CRACK More informationQuantity required : 1 |
||||||
|
26 |
629440 - EN.CYL.PIST. More informationQuantity required : 1 |
||||||
|
27 |
629432 - VIS More informationQuantity required : 2 |
||||||
|
28 |
629420 - ECROU More informationQuantity required : 2 |
||||||
|
30 |
629439 - GOUPILLE More informationQuantity required : 2 |
||||||
|
31 |
629442 - RACCORD More informationQuantity required : 1 |
||||||
|
32 |
629443 - VIS More informationQuantity required : 1 |
||||||
|
33 |
629444 - O-RING More informationQuantity required : 1 |
