Vehicle Exploded View - PIAGGIO VU TRACKMASTER ATV 500 Trackmaster 500
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

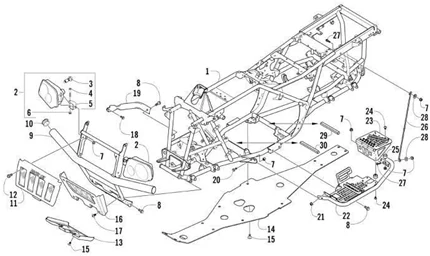

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/338/Trackmaster_500_02.01.PNG)
1 |
646311 - CHASSIS More informationQuantity required : 1 |
||||||
|
4 |
628830 - VIS More informationQuantity required : 2 |
||||||
|
5 |
628831 - SUPPORT More informationQuantity required : 2 |
||||||
|
6 |
628832 - ECROU More informationQuantity required : 2 |
||||||
|
7 |
628833 - ECROU More informationQuantity required : 18 |
||||||
|
8 |
628716 - VIS More informationQuantity required : 8 |
||||||
|
9 |
628837 - PARE CHOC More informationQuantity required : 1 |
||||||
|
10 |
628838 - BOUCHON More informationQuantity required : 2 |
||||||
|
11 |
628839 - CALANDRE More informationQuantity required : 11 |
||||||
|
12 |
628795 - VIS More informationQuantity required : 2 |
||||||
|
13 |
628843 - PLAQUE More informationQuantity required : 1 |
||||||
|
13 |
628844 - PLAQUE More informationQuantity required : 1 |
||||||
|
13 |
628845 - PLAQUE More informationQuantity required : 1 |
||||||
|
15 |
628718 - VIS More informationQuantity required : 1 |
||||||
|
16 |
628841 - CALANDRE More informationQuantity required : 1 |
||||||
|
17 |
628842 - VIS More informationQuantity required : 4 |
||||||
|
18 |
628836 - VIS More informationQuantity required : 2 |
||||||
|
19 |
628835 - POIGNEE More informationQuantity required : 2 |
||||||
|
20 |
628761 - VIS More informationQuantity required : 8 |
||||||
|
21 |
628753 - ECROU More informationQuantity required : 2 |
||||||
|
22 |
646313 - TAPIS More informationQuantity required : 1 |
||||||
|
22 |
646314 - TAPIS More informationQuantity required : 1 |
||||||
|
23 |
646316 - TAPIS More informationQuantity required : 1 |
||||||
|
23 |
646315 - TAPIS More informationQuantity required : 1 |
||||||
|
24 |
646317 - VIS More informationQuantity required : 8 |
||||||
|
25 |
646318 - MOUNT, RUBBER More informationQuantity required : 8 |
||||||
|
26 |
646319 - TIRANT More informationQuantity required : 1 |
||||||
|
26 |
646320 - TIRANT More informationQuantity required : 1 |
||||||
|
29 |
628853 - GARNITURE More informationQuantity required : 1 |
||||||
|
30 |
628852 - GRILLE More informationQuantity required : 1 |
