Vehicle Exploded View - PIAGGIO VU TRACKMASTER ATV 400 Trackmaster 400 Passo Longo 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

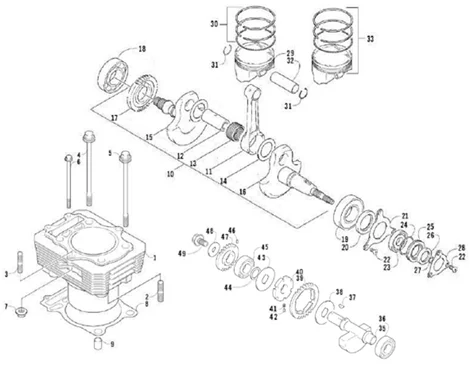

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/337/Trackmaster_400_Passo_Longo_2006_01.07.PNG)
1 |
629431 - EN.CYL.PIST. More informationQuantity required : 1 |
||||||
|
2 |
629432 - VIS More informationQuantity required : 2 |
||||||
|
4 |
629434 - BULLONE More informationQuantity required : 2 |
||||||
|
5 |
629435 - BULLONE More informationQuantity required : 2 |
||||||
|
6 |
629436 - BULLONE More informationQuantity required : 2 |
||||||
|
7 |
629420 - ECROU More informationQuantity required : 2 |
||||||
|
8 |
629438 - GARNITURE More informationQuantity required : 1 |
||||||
|
9 |
629439 - GOUPILLE More informationQuantity required : 2 |
||||||
|
10 |
629511 - VILEBREQUIN More informationQuantity required : 1 |
||||||
|
11 |
629512 - BIELLE More informationQuantity required : 1 |
||||||
|
12 |
629513 - PIVOT More informationQuantity required : 1 |
||||||
|
13 |
629514 - DOUILLE More informationQuantity required : 1 |
||||||
|
14 |
629515 - RONDELLE More informationQuantity required : 2 |
||||||
|
15 |
629516 - CRANKSHAFT RIGHT More informationQuantity required : 1 |
||||||
|
16 |
629517 - CRANKSHAFT RIGHT More informationQuantity required : 1 |
||||||
|
17 |
629518 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
18 |
629519 - DOUILLE More informationQuantity required : 1 |
||||||
|
19 |
629520 - DOUILLE More informationQuantity required : 1 |
||||||
|
20 |
629521 - JOINT SPIE More informationQuantity required : 1 |
||||||
|
21 |
629522 - RETENUE More informationQuantity required : 1 |
||||||
|
22 |
629523 - VIS More informationQuantity required : 6 |
||||||
|
23 |
629524 - DOUILLE More informationQuantity required : 1 |
||||||
|
24 |
629525 - O-RING More informationQuantity required : 1 |
||||||
|
25 |
629526 - SPACER More informationQuantity required : 1 |
||||||
|
26 |
629527 - JOINT SPIE More informationQuantity required : 1 |
||||||
|
27 |
629528 - O-RING More informationQuantity required : 1 |
||||||
|
28 |
629529 - RETENUE More informationQuantity required : 1 |
||||||
|
29 |
629530 - PISTON More informationQuantity required : 1 |
||||||
|
30 |
629531 - RING, PISTON More informationQuantity required : 1 |
||||||
|
31 |
629532 - JOINT More informationQuantity required : 2 |
||||||
|
32 |
629533 - PIN, PISTON More informationQuantity required : 1 |
||||||
|
33 |
629534 - PISTON SET More informationQuantity required : 1 |
||||||
|
35 |
629562 - BALANCER, CRACK More informationQuantity required : 1 |
||||||
|
36 |
629563 - DOUILLE More informationQuantity required : 2 |
||||||
|
37 |
629564 - CLAVETTE More informationQuantity required : 1 |
||||||
|
39 |
629565 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
40 |
651980 - GUIDE More informationQuantity required : 1 |
||||||
|
41 |
651981 - RESSORT More informationQuantity required : 2 |
||||||
|
42 |
651982 - PIN More informationQuantity required : 3 |
||||||
|
43 |
651983 - RONDELLE More informationQuantity required : 2 |
||||||
|
44 |
629833 - RONDELLE More informationQuantity required : 1 |
||||||
|
46 |
629567 - PIVOT More informationQuantity required : 1 |
||||||
|
47 |
629566 - STARTER More informationQuantity required : 1 |
||||||
|
48 |
629568 - RONDELLE More informationQuantity required : 1 |
||||||
|
49 |
629569 - BULLONE More informationQuantity required : 1 |
