Vehicle Exploded View - PIAGGIO VU TRACKMASTER ATV 400 Trackmaster 400 Passo Longo 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

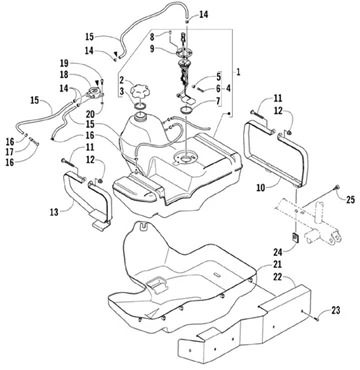

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/337/Trackmaster_400_Passo_Longo_2006_02.47.PNG)
1 |
657632 - RESERVOIR More informationQuantity required : 1 |
||||||
|
2 |
629089 - BOUCHON More informationQuantity required : 1 |
||||||
|
3 |
629090 - GARNITURE More informationQuantity required : 1 |
||||||
|
4 |
657633 - JAUGE More informationQuantity required : 1 |
||||||
|
5 |
657634 - COLLIER More informationQuantity required : 1 |
||||||
|
6 |
657635 - FILTER More informationQuantity required : 1 |
||||||
|
9 |
657638 - PLAQUE More informationQuantity required : 1 |
||||||
|
10 |
657639 - SUPPORT More informationQuantity required : 1 |
||||||
|
12 |
657641 - ECROU More informationQuantity required : 2 |
||||||
|
13 |
657642 - SUPPORT More informationQuantity required : 1 |
||||||
|
14 |
657643 - COLLIER More informationQuantity required : 4 |
||||||
|
15 |
657644 - TUYAU CARBURANT More informationQuantity required : 1 |
||||||
|
16 |
657645 - COLLIER More informationQuantity required : 6 |
||||||
|
17 |
657646 - RACCORD More informationQuantity required : 1 |
||||||
|
18 |
657647 - POMPE ALIMENTATION More informationQuantity required : 1 |
||||||
|
19 |
629409 - VIS More informationQuantity required : 2 |
||||||
|
20 |
629194 - ECROU More informationQuantity required : 2 |
||||||
|
21 |
657648 - DECALCOMANIE More informationQuantity required : 1 |
||||||
|
22 |
657649 - DECALCOMANIE More informationQuantity required : 1 |
||||||
|
23 |
657650 - VIS More informationQuantity required : 5 |
||||||
|
24 |
657651 - COLLIER More informationQuantity required : 2 |
||||||
|
25 |
657652 - VIS More informationQuantity required : 2 |
