Vehicle Exploded View - PIAGGIO VU TRACKMASTER ATV 400 Trackmaster 400 Passo Corto 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

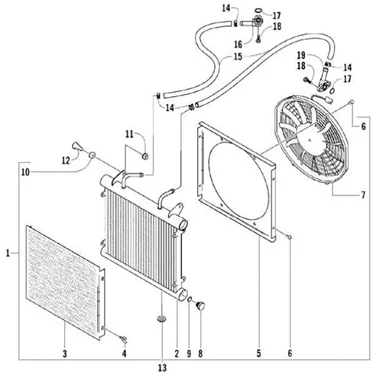

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/336/Trackmaster_400_Passo_Corto_2006_02.55.PNG)
1 |
657601 - RADIATEUR More informationQuantity required : 1 |
||||||
|
2 |
629185 - RADIATEUR More informationQuantity required : 1 |
||||||
|
3 |
629186 - VIS More informationQuantity required : 1 |
||||||
|
4 |
629187 - VIS More informationQuantity required : 4 |
||||||
|
5 |
629188 - CANALISATION More informationQuantity required : 1 |
||||||
|
6 |
629189 - VIS More informationQuantity required : 8 |
||||||
|
7 |
651852 - VENTILATEUR More informationQuantity required : 1 |
||||||
|
8 |
629191 - O-RING More informationQuantity required : 1 |
||||||
|
9 |
629192 - O-RING More informationQuantity required : 1 |
||||||
|
10 |
629193 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
11 |
629194 - ECROU More informationQuantity required : 2 |
||||||
|
12 |
629195 - VIS More informationQuantity required : 2 |
||||||
|
13 |
629196 - JOINT More informationQuantity required : 2 |
||||||
|
14 |
629197 - COLLIER More informationQuantity required : 4 |
||||||
|
15 |
629198 - CANALISATION FREINS More informationQuantity required : 2 |
||||||
|
16 |
629199 - TUYAU More informationQuantity required : 1 |
||||||
|
17 |
629200 - O-RING More informationQuantity required : 2 |
||||||
|
18 |
629201 - VIS More informationQuantity required : 4 |
||||||
|
19 |
629202 - TUYAU More informationQuantity required : 1 |
