Vehicle Exploded View - PIAGGIO VU TRACKMASTER ATV 400 Trackmaster 400 Passo Corto 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

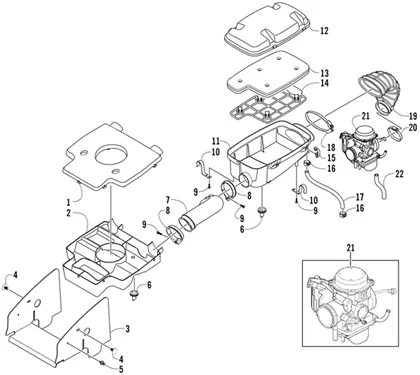

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/336/Trackmaster_400_Passo_Corto_2006_01.45.PNG)
1 |
657609 - DIAPHRAGME POUR AIR More informationQuantity required : 1 |
||||||
|
2 |
657610 - DIAPHRAGME POUR AIR More informationQuantity required : 1 |
||||||
|
3 |
657903 - SUPPORT More informationQuantity required : 1 |
||||||
|
4 |
657612 - BOUCHON More informationQuantity required : 2 |
||||||
|
5 |
628788 - RIVET More informationQuantity required : 2 |
||||||
|
6 |
629135 - SOUPAPE More informationQuantity required : 2 |
||||||
|
7 |
657613 - MANCHON More informationQuantity required : 1 |
||||||
|
8 |
651998 - COLLIER More informationQuantity required : 2 |
||||||
|
9 |
628732 - VIS More informationQuantity required : 7 |
||||||
|
10 |
657615 - COLLIER More informationQuantity required : 2 |
||||||
|
11 |
657616 - BOITIER DU FILTRE More informationQuantity required : 1 |
||||||
|
12 |
657617 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/7/0/2/img/119702.jpg)
13 |
AIR FILTER "PIAGGIO GENUINE PART" QUAD ATV 400 TRACKMASTER -657618- More informationQuantity required : 1 |
||||||
|
15 |
657620 - TUYAU More informationQuantity required : 4 |
||||||
|
16 |
629139 - COLLIER More informationQuantity required : 2 |
||||||
|
18 |
657622 - COLLIER More informationQuantity required : 1 |
||||||
|
19 |
657623 - MANCHON More informationQuantity required : 1 |
||||||
|
20 |
629122 - COLLIER More informationQuantity required : 1 |
||||||
|
21 |
657624 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
22 |
657625 - TUYAU More informationQuantity required : 1 |
