Vehicle Exploded View - APRILIA SXV 550 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

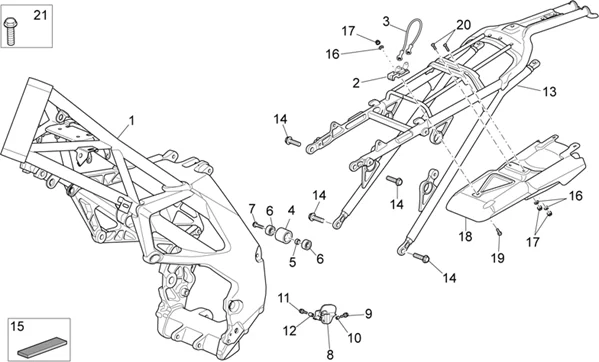

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/645/SXV_550_2006-2007_28.01.PNG)
1 |
851288 - ASS.TELAIO More informationQuantity required : 1 |
||||||
|
1 |
CHASSIS |
||||||
|
1 |
853513 - TELAIO More informationQuantity required : 1 |
||||||
|
2 |
AP9100766 - PIASTRINA FISS.PROTEZ.ANTICAL. More informationQuantity required : 1 |
||||||
|
3 |
AP9100770 - CAVO RITEGNO SERBATOIO BENZ. More informationQuantity required : 1 |
||||||
|
4 |
AP9100173 - RULLO CATENA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/9/img/72599.jpg)
5 |
AP9100174 - DISTANZIALE More informationQuantity required : 1 |
||||||
|
6 |
AP9100175 - CUSCINETTO A SFERE D8 D22 SP7 More informationQuantity required : 2 |
||||||
|
7 |
853534 - VIS M8X35 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
7 |
AP8152289 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
8 |
AP9100688 - PATTINO INFERIORE More informationQuantity required : 1 |
||||||
|
9 |
853536 - VIS M5X12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
9 |
AP8152272 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.jpg)
10 |
AP8120253 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
11 |
VIS M5x20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/7/img/69697.jpg)
11 |
855799 - VIS BRIDE M5X0,8 L.28 EX 7 More informationQuantity required : 1 |
||||||
|
12 |
AP8120313 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
12 |
AP9100724 - DISTANZIALE More informationQuantity required : 1 |
||||||
|
13 |
855337 - AXE More informationQuantity required : 1 |
||||||
|
13 |
AP9100065 - ASSIEME TELAIETTO POSTERIORE More informationQuantity required : 1 |
||||||
|
13 |
AP9100315 - ASSIEME TELAIETTO POSTERIORE More informationQuantity required : 1 |
||||||
|
14 |
853533 - VIS M101,5 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/7/9/img/97279.jpg)
14 |
AP9100389 - VITE M10X1,25 More informationQuantity required : 4 |
||||||
|
15 |
890517 - JOINT CONVOYEUR G More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.jpg)
16 |
AP8150159 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
17 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 3 |
||||||
|
18 |
AP9100243 - PROTEZIONE ANTICALORE More informationQuantity required : 1 |
||||||
|
19 |
AP9100769 - VITE TBEI M4X10 INOX More informationQuantity required : 1 |
||||||
|
20 |
AP9100768 - VITE TSP M4X12 INOX More informationQuantity required : 2 |
||||||
|
21 |
853535 - VIS M8X30 More informationQuantity required : 1 |
