Vehicle Exploded View - APRILIA SXV 550 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

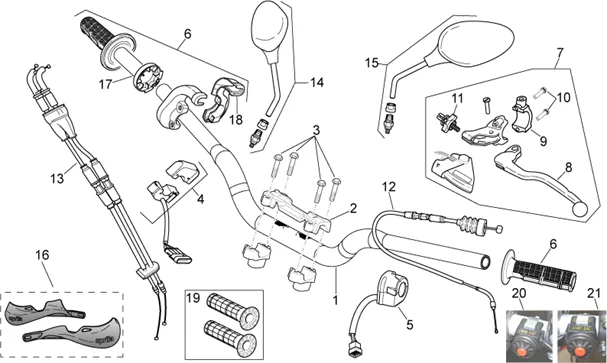

Chassis : 28.19 COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/645/SXV_550_2006-2007_28.19.PNG)
1 |
AP9100704 - MANUBRIO SEZ.VARIABILE More informationQuantity required : 1 |
||||||
|
2 |
853567 - COLLIER More informationQuantity required : 1 |
||||||
|
2 |
AP9100297 - MORSETTO SUPERIORE MANUBRIO More informationQuantity required : 1 |
||||||
|
3 |
853534 - VIS M8X35 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
3 |
AP8152289 - VIS BRIDE More informationQuantity required : 4 |
||||||
|
4 |
AP9100514 - DEVIOLUCI DX More informationQuantity required : 1 |
||||||
|
5 |
AP9100513 - DEVIOLUCI SX More informationQuantity required : 1 |
||||||
|
6 |
AP9100481 - COMANDO GAS COMPL.DI MANOPOLE More informationQuantity required : 1 |
||||||
|
6 |
AP9100801 - COMANDO GAS CON MANOPOLE More informationQuantity required : 1 |
||||||
|
7 |
AP9100484 - LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
7 |
AP9100636 - COMANDO FRIZIONE More informationQuantity required : 1 |
||||||
|
8 |
AP9100939 - LEVA FRIZIONE More informationQuantity required : 1 |
||||||
|
9 |
AP9100940 - CAVALLOTTO More informationQuantity required : 1 |
||||||
|
10 |
853598 - VIS M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
10 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
11 |
AP9100941 - REGISTRO CAVO FRIZIONE More informationQuantity required : 1 |
||||||
|
12 |
853662 - TRANSMISSION More informationQuantity required : 1 |
||||||
|
12 |
AP9100486 - TRASMISSIONE COMANDO FRIZIONE More informationQuantity required : 1 |
||||||
|
13 |
853661 - TRANSMISSION GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/2/1/0/img/47210.jpg)
13 |
THROTTLE CABLE KIT "PIAGGIO GENUINE PARTS" APRILIA 450-550 SXV -853976 More informationQuantity required : 1 |
||||||
|
13 |
AP9100802 - TRASMISSIONE COMANDO GAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/2/img/71242.jpg)
14 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -AP8104921 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/3/img/71243.jpg)
15 |
MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -AP8104922 More informationQuantity required : 1 |
||||||
|
16 |
851084 - MOTARD HANDGUARDS More informationQuantity required : 1 |
||||||
|
17 |
851359 - TUBE GAZ More informationQuantity required : 1 |
||||||
|
18 |
851360 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/6/4/img/72264.jpg)
19 |
HAND GRIP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX (PAIR) -AP8218628 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/9/7/img/97297.jpg)
20 |
AP9100425 - INTERRUPTEUR ENGINE-STOP More informationQuantity required : 1 |
||||||
|
21 |
AP9100426 - BOUTON DEMARRAGE More informationQuantity required : 1 |
