Vehicle Exploded View - APRILIA SX 125 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

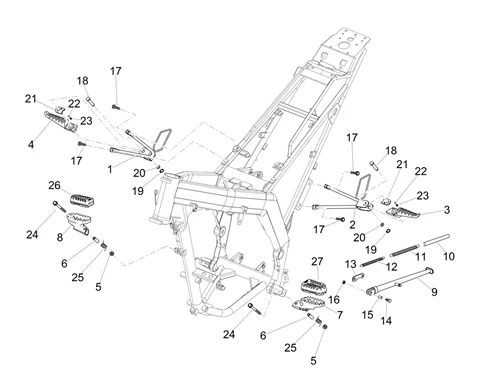

Châssis : 01.03 REPOSE-PIEDS - BÉQUILLES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/996/SX_125_E5_2021_(EMEA)_01.03.png)
1 |
2B004605 - SUPPORT R-P. PASS. More informationQuantity required : 1 |
|||||||||
|
2 |
2B004606 - SUPPORT R-P. G PASS. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/9/5/0/img/173950.JPG)
3 |
AP8146865A - REP-PDS PASS.GCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/9/5/1/img/173951.JPG)
4 |
AP8146864A - REP-PIEDS PASS.D. More informationQuantity required : 1 |
|||||||||
|
5 |
2R000441 - ECROU More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/8/img/63628.jpg)
6 |
RING FOR FOOTREST LINK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RX, SX -00002215152- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/4/1/0/img/154410.JPG)
7 |
86449401WNA - SCTO.ESTR.IZ.PILOTO NGR.HUM.MUL125 (C) More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/4/1/1/img/154411.JPG)
8 |
86449301WNA - SCTO.ESTR.DR.PILOTO NGR.HUM.MUL125 (C) More informationQuantity required : 1 |
|||||||||
|
9 |
2R000392 - BEQUILLE LATERALE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
10 |
SIDE STAND SPRING COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8102524- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/2/0/img/70320.jpg)
11 |
RETURN SPRING FOR STAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -867291- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/1/9/img/70319.jpg)
12 |
RETURN SPRING FOR STAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -867290- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/0/img/64310.jpg)
13 |
STAND SPRING PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -2B004468- More informationQuantity required : 1 |
|||||||||
|
14 |
2R000391 - VIS FIX. BEQUILLE More informationQuantity required : 1 |
|||||||||
|
15 |
00H00801431 - DOUILLE BUTFE BEQUILLE GPR"R" More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
16 |
NUT - FOR SIDE STAND (10X1,25) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8152001- More informationQuantity required : 1 |
|||||||||
|
17 |
2R000484 - VIS M8 X 17 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/1/img/72311.jpg)
18 |
AP8221286 - PIVOT REPOSE-PIEDS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/8/img/63808.jpg)
19 |
CLIP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER -006408- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/0/img/63640.jpg)
20 |
00003515370 - RONDELLE FIXATION COUVRE-CHAIN More informationQuantity required : 1 |
|||||||||
|
21 |
866464 - PLACA RETENC.ESTRIB.GPR125 09 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/3/img/66283.jpg)
22 |
295591 - BILLE More informationQuantity required : 2 |
|||||||||
|
22 |
2955916 - BILLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
23 |
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133- More informationQuantity required : 2 |
|||||||||
|
24 |
2R000436 - VIS M8×40 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/4/img/64954.jpg)
25 |
RIDER FOOTREST SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H04903292- More informationQuantity required : 1 |
|||||||||
|
26 |
863247 - PROTECTION More informationQuantity required : 1 |
|||||||||
|
27 |
863248 - PROTECTION More informationQuantity required : 1 |
|||||||||
