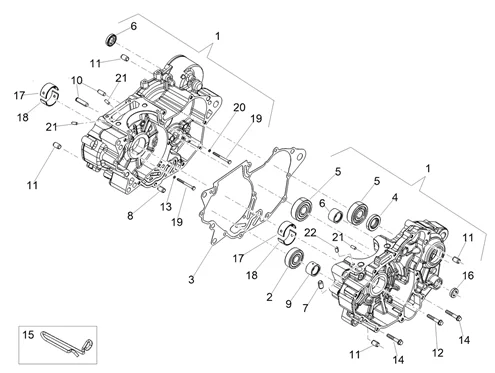

Vehicle Exploded View - APRILIA SX 125 E5 2021 (EMEA) APRILIA

Moteur : 03.03 CARTERS I
Carters I
Search
1A01909901 - COMPLETE CRANKCASE 1 CAT

1
P2R reference P2R reference 176996
Maker reference Maker reference 1A01909901

1A01909901 - COMPLETE CRANKCASE 1 CAT

More information

Quantity required : 1

1A01909902 - COMPLETE CRANKCASE 2 CAT

1
P2R reference P2R reference 176997
Maker reference Maker reference 1A01909902

1A01909902 - COMPLETE CRANKCASE 2 CAT

More information

Quantity required : 1

BEARING (15.42.13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -83018R

2
P2R reference P2R reference 68899
Maker reference Maker reference 83018R

BEARING (15.42.13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -83018R

More information

Quantity required : 4

GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO 4 stroke 2011> -873086-

3
P2R reference P2R reference 70461
Maker reference Maker reference 873086

GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO 4 STROKE 2011> -873086-

More information

Quantity required : 1

GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019

4
P2R reference P2R reference 69412
Maker reference Maker reference 847019

GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019

More information

Quantity required : 4

CRANKCASE BEARING "PIAGGIO GENUINE PART" 500 BEVERLY, X9/GILERA 500 NEXUS/APRILIA 500 ATLANTIC, 125 RS, RX, SX -82668R

5
P2R reference P2R reference 68611
Maker reference Maker reference 82668R

CRANKCASE BEARING "PIAGGIO GENUINE PART" 500 BEVERLY, X9/GILERA 500 NEXUS/APRILIA 500 ATLANTIC, 125 RS, RX, SX -82668R

More information

Quantity required : 4

182015 - CAGE A ROUL.

6
P2R reference P2R reference 65800
Maker reference Maker reference 182015

182015 - CAGE A ROUL.

More information

Quantity required : 4

AP3FCN000128 - BAGUE 12X13

7
P2R reference P2R reference 71138
Maker reference Maker reference AP3FCN000128

AP3FCN000128 - BAGUE 12X13

More information

Quantity required : 2

484993 - PIVOT DE CENTR.

8
P2R reference P2R reference 66669
Maker reference Maker reference 484993

484993 - PIVOT DE CENTR.

More information

Quantity required : 1

ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442-

9
P2R reference P2R reference 65778
Maker reference Maker reference 177442

ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442-

More information

Quantity required : 4

OIL PUMP AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, TUONO, RS -847076-

10
P2R reference P2R reference 69450
Maker reference Maker reference 847076

OIL PUMP AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, TUONO, RS -847076-

More information

Quantity required : 4

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956

11
P2R reference P2R reference 72696
Maker reference Maker reference B015956

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956

More information

Quantity required : 4

828922 - VIS

12
P2R reference P2R reference 68795
Maker reference Maker reference 828922

828922 - VIS

More information

Quantity required : 4

224664 - RONDELLE

13
P2R reference P2R reference 65951
Maker reference Maker reference 224664

224664 - RONDELLE

More information

Quantity required : 4

B016425 - VIS BRIDE

14
P2R reference P2R reference 72705
Maker reference Maker reference B016425

B016425 - VIS BRIDE

More information

Quantity required : 4

873735 - COLLIER

15
P2R reference P2R reference 70501
Maker reference Maker reference 873735

873735 - COLLIER

More information

Quantity required : 4

GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075-

16
P2R reference P2R reference 69449
Maker reference Maker reference 847075

GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075-

More information

Quantity required : 4

8580170B - SEMICUSCIN.

17
P2R reference P2R reference 109048
Maker reference Maker reference 8580170B

8580170B - SEMICUSCIN.

More information

Quantity required : 4

8580170R - SEMICUSCIN.DI

17
P2R reference P2R reference 69761
Maker reference Maker reference 8580170R

8580170R - SEMICUSCIN.DI

More information

Quantity required : 4

8580180R - DEMI ROULEMENT

18
P2R reference P2R reference 108948
Maker reference Maker reference 8580180R

8580180R - DEMI ROULEMENT

More information

Quantity required : 4

8580180B - DEMI ROULEMENT

18
P2R reference P2R reference 108946
Maker reference Maker reference 8580180B

8580180B - DEMI ROULEMENT

More information

Quantity required : 4

031057 - BOULON S03105700

19
P2R reference P2R reference 65633
Maker reference Maker reference 0310575

031057 - BOULON S03105700

More information

Quantity required : 4

224664 - RONDELLE

20
P2R reference P2R reference 65951
Maker reference Maker reference 224664

224664 - RONDELLE

More information

Quantity required : 5

842360 - BOUCHON

21
P2R reference P2R reference 69226
Maker reference Maker reference 842360

842360 - BOUCHON

More information

Quantity required : 3

484993 - PIVOT DE CENTR.

22
P2R reference P2R reference 66669
Maker reference Maker reference 484993

484993 - PIVOT DE CENTR.

More information

Quantity required : 1
