Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

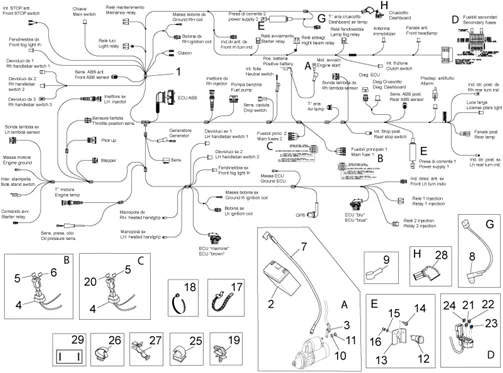

Chassis : 33.43 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.43.PNG)
1 |
CABLE BUNDLE "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 STELVIO 2011> VERSION ABS -884263 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/1/img/73441.jpg)
2 |
BATTERY (12V YTX 20AH-BS) "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, GRISO -GU05704531 More informationQuantity required : 1 |
||||||
|
3 |
977916 - CAPPUCCIO ISOLANTE MOTORINO AVVIAMENTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/7/img/71277.jpg)
4 |
AP8112811 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
5 |
CM225730 - FUSIBLE More informationQuantity required : 2 |
||||||
|
6 |
CM225740 - FUSIBILE LITTELFUSE ARANCIONE More informationQuantity required : 2 |
||||||
|
7 |
GU06747900 - CABLAGE MASSE-BATTERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.jpg)
8 |
AP8124936 - DETEC. TEMPER. AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/0/img/67200.jpg)
9 |
581061 - CAPUCHON More informationQuantity required : 1 |
||||||
|
10 |
GU95129131 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
GU92609408 - ECROU M8X1,25 More informationQuantity required : 1 |
||||||
|
12 |
B063212 - PRISE More informationQuantity required : 2 |
||||||
|
13 |
886911 - SUPPORTO PRESA ELETTRICA More informationQuantity required : 1 |
||||||
|
14 |
GU98350210 - VIS TBEI M5X10 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.jpg)
15 |
GU95008205 - RONDELLE 5,3X10X0,8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/4/img/132564.jpg)
16 |
GU92787205 - ECROU BORGNE More informationQuantity required : 2 |
||||||
|
17 |
GU06609600 - COLLIER More informationQuantity required : 9 |
||||||
|
18 |
640879 - COLLIER More informationQuantity required : 2 |
||||||
|
18 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 23 |
||||||
|
18 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
18 |
GU93304390 - COLLIER More informationQuantity required : 2 |
||||||
|
19 |
AP8221310 - PASSE-CABLE More informationQuantity required : 4 |
||||||
|
20 |
CM225720 More informationQuantity required : 2 |
||||||
|
21 |
CM225610 More informationQuantity required : 4 |
||||||
|
22 |
CM225615 More informationQuantity required : 3 |
||||||
|
23 |
CM225603 - FUSIBILE 3A VIOLA More informationQuantity required : 2 |
||||||
|
24 |
CM225605 - FUSIBLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
25 |
AP8201727 - GUIDE-CABLE NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
26 |
CM013202 - RESSORT More informationQuantity required : 1 |
||||||
|
27 |
AP9100765 - MOLLETTA RITEGNO CAVI More informationQuantity required : 1 |
||||||
|
28 |
856152 - CAPUCHON ISOLANT More informationQuantity required : 1 |
||||||
|
29 |
887947 - PROTEZIONE More informationQuantity required : 1 |
