Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

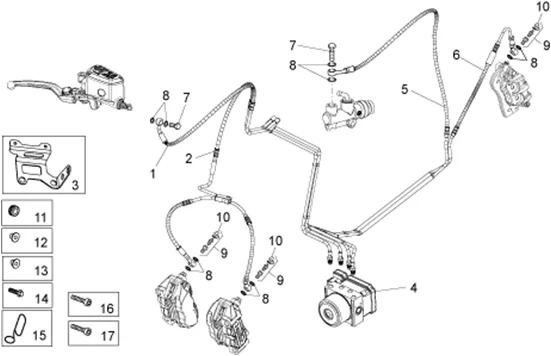

Chassis : 33.39 SYSTEME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.39.PNG)
1 |
886162 - TUBO POMPA ANT / CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
2 |
886164 - TUBO PINZE ANT / CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
3 |
886149 - CONTROPIASTRA More informationQuantity required : 1 |
||||||
|
4 |
2D000193 - CENTRALE More informationQuantity required : 1 |
||||||
|
5 |
886163 - TUBO POMPA POST / CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
6 |
886165 - TUBO PINZA POST / CENTRALINA ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
7 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
AP8113004 - RONDELLE More informationQuantity required : 10 |
||||||
|
9 |
AP8133945 - KIT SPURGO ANT More informationQuantity required : 3 |
||||||
|
10 |
AP8113070 - CAPUCHON RENIFLARD More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
11 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
12 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
13 |
AP8121032 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
14 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
15 |
AP8201417 - GUIDE CABLE TUYAU FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/7/3/img/132973.jpg)
16 |
GU98230625 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
17 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE-GUZZI -672380 More informationQuantity required : 2 |
