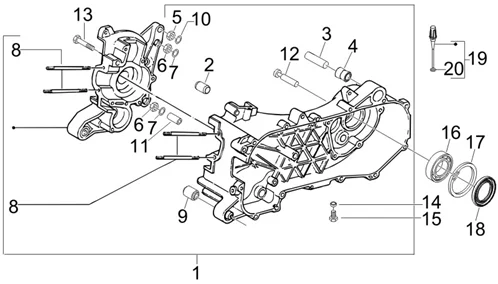

Vehicle Exploded View - GILERA STALKER 50 2008-2011 GILERA

Moteur : 01.05 CARTER
Carter
Search
CM1273395 - CARTER

1
P2R reference P2R reference 96013
Maker reference Maker reference CM1273395

CM1273395 - CARTER

More information

Quantity required : 1
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956-

2
P2R reference P2R reference 72696
Maker reference Maker reference B015956

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956-

More information

Quantity required : 2
SPACER- FOR ABSORBER SILENTBLOC "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -266625-

3
P2R reference P2R reference 66054
Maker reference Maker reference 266625

SPACER- FOR ABSORBER SILENTBLOC "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -266625-

More information

Quantity required : 1
SILENBLOC FOR CRANKCASE (SHOCK ABSORBER SUPPORT) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -267823-

4
P2R reference P2R reference 66066
Maker reference Maker reference 267823

SILENBLOC FOR CRANKCASE (SHOCK ABSORBER SUPPORT) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -267823-

More information

Quantity required : 1
020006 - ECROU

5
P2R reference P2R reference 65453
Maker reference Maker reference 0200065

020006 - ECROU

More information

Quantity required : 1
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008-

6
P2R reference P2R reference 65455
Maker reference Maker reference 0200085

NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008-

More information

Quantity required : 2
113533 - BAGUE

7
P2R reference P2R reference 65698
Maker reference Maker reference 113533

113533 - BAGUE

More information

Quantity required : 2
CYLINDER STUD BOLT "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, NRG/ GILERA 50 STALKER, RUNNER 2 stroke/ APRILIA SR, SR MOTARD 2 stroke -1A003633R-

8
P2R reference P2R reference 70652
Maker reference Maker reference 1A003633R

CYLINDER STUD BOLT "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, NRG/ GILERA 50 STALKER, RUNNER 2 STROKE/ APRILIA SR, SR MOTARD 2 STROKE -1A003633R-

More information

Quantity required : 4
SILENTBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -266773-

9
P2R reference P2R reference 66056
Maker reference Maker reference 266773

SILENTBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -266773-

More information

Quantity required : 2
287223 - CIRCLIPS

10
P2R reference P2R reference 66181
Maker reference Maker reference 287223

287223 - CIRCLIPS

More information

Quantity required : 1
BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860-

11
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860-

More information

Quantity required : 1
272921 - BAGUE

12
P2R reference P2R reference 66120
Maker reference Maker reference 272921

272921 - BAGUE

More information

Quantity required : 1
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -B017632-

13
P2R reference P2R reference 72769
Maker reference Maker reference B017632

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -B017632-

More information

Quantity required : 8
DRAIN SCREW GASKET (8,2x12x1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703-

14
P2R reference P2R reference 66689
Maker reference Maker reference 485703

DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703-

More information

Quantity required : 1
269755 - VIS

15
P2R reference P2R reference 66085
Maker reference Maker reference 269755

269755 - VIS

More information

Quantity required : 1
DRIVE SHAFT BEARING (20X47X14) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -434735-

16
P2R reference P2R reference 66459
Maker reference Maker reference 434735

DRIVE SHAFT BEARING (20X47X14) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -434735-

More information

Quantity required : 1
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647-

17
P2R reference P2R reference 63825
Maker reference Maker reference 0066475

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647-

More information

Quantity required : 1
GASKET RING- WHEEL AXLE (47X30X6) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -478498-

18
P2R reference P2R reference 66558
Maker reference Maker reference 478498

GASKET RING- WHEEL AXLE (47X30X6) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -478498-

More information

Quantity required : 1
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130-

19
P2R reference P2R reference 68991
Maker reference Maker reference 832130

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130-

More information

Quantity required : 1
827085 - JOINT

20
P2R reference P2R reference 68643
Maker reference Maker reference 827085

827085 - JOINT

More information

Quantity required : 1
