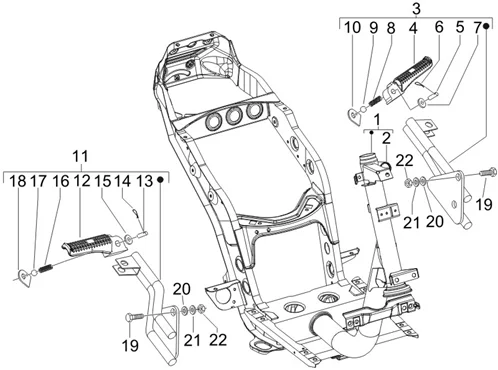

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/152/Stalker_2008-2011_02.01.PNG)
1 |
6206885 - CHASSIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/7/img/66037.jpg)
2 |
LOCK BODY SUPPORT "PIAGGIO GENUINE PART" 125 VESPA PX/GILERA 50 STALKER -259420- More informationQuantity required : 1 |
|||||||||
|
3 |
573629 - SUPPORT REPOSE PIED GAUCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/3/8/img/80338.jpg)
4 |
LEFT FOOTREST "PIAGGIO GENUINE PART" GILERA 50 STALKER -574226- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/5/img/66285.jpg)
5 |
295593 - PIVOT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
6 |
259933 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
7 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/5/6/1/img/162561.jpg)
8 |
2955909 - RESSORT More informationQuantity required : 1 |
|||||||||
|
8 |
2955909 - RESSORT More informationQuantity required : 1 |
|||||||||
|
9 |
2955916 - BILLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/3/img/66283.jpg)
9 |
295591 - BILLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/8/7/img/80287.JPG)
10 |
573956 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
11 |
573630 - REPOSE PIED D COMPLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/3/9/img/80339.jpg)
12 |
RIGHT FOOTREST "PIAGGIO GENUINE PART" GILERA 50 STALKER -574227- More informationQuantity required : 1 |
|||||||||
|
13 |
295593 - PIVOT More informationQuantity required : 1 |
|||||||||
|
14 |
259933 - RESSORT More informationQuantity required : 1 |
|||||||||
|
15 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
|||||||||
|
16 |
2955909 - RESSORT More informationQuantity required : 1 |
|||||||||
|
16 |
2955909 - RESSORT More informationQuantity required : 1 |
|||||||||
|
17 |
295591 - BILLE More informationQuantity required : 1 |
|||||||||
|
17 |
2955916 - BILLE More informationQuantity required : 1 |
|||||||||
|
18 |
573956 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
19 |
031116 - BOULON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/2/img/68492.JPG)
20 |
709077 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
21 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
22 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
|||||||||
