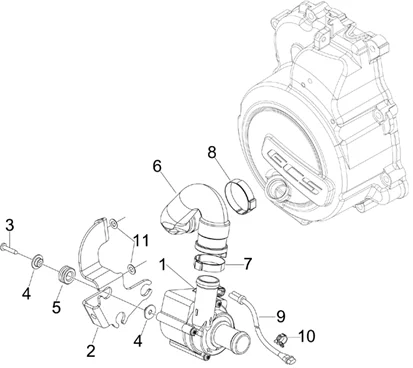

Moteur : 01.19 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/580/SR_MAX_125_2011-2013_01.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/0/img/70570.jpg)
1 |
WATER PUMP "PIAGGIO GENUINE PART" 125 MP3, X7, BEVERLY INJECTION/GILERA 125 NEXUS INJECTION/APRILIA 125 SR INJECTION -875068- More informationQuantity required : 1 |
||||||
2 |
876400 - ETRIER POMPE A EAU More informationQuantity required : 1 |
||||||
|
3 |
015729 - VIS S01572900 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/6/8/img/70568.jpg)
4 |
874991 - ENTRETOISE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
5 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665- More informationQuantity required : 3 |
||||||
|
6 |
878458 - TUYAU EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/1/img/72881.jpg)
7 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM001922- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/8/img/72878.jpg)
8 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -CM001917- More informationQuantity required : 1 |
||||||
|
9 |
641345 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
10 |
CM006910 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
11 |
003056 - RONDELLE More informationQuantity required : 2 |
All the exploded views of this vehicle
-
