Vehicle Exploded View - APRILIA SR 125 SR MAX 125 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

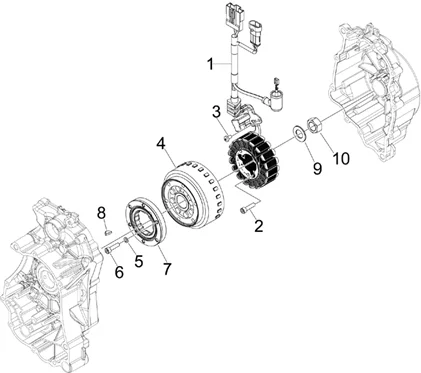

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/580/SR_MAX_125_2011-2013_01.21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/2/img/67182.jpg)
1 |
IGNITION STATOR "PIAGGIO GENUINE PART" 125 MP3, X7, VESPA GTS, BEVERLY/GILERA 125 NEXUS/APRILIA 125 SR MAX (MOTEUR INJECTION) -58070R- More informationQuantity required : 1 |
|||||||||
2 |
122637 - VIS More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/3/img/65443.jpg)
3 |
018575 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/0/img/67830.jpg)
4 |
IGNITION ROTOR "PIAGGIO GENUINE PART" 125 MP3, X7, VESPA GTS, BEVERLY/GILERA 125 NEXUS/APRILIA 125 SR MAX (MOTEUR INJECTION) -639410- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/9/img/66579.JPG)
5 |
479515 - RONDELLE More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/6/img/70656.jpg)
6 |
877289 - VIS More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/4/img/69544.jpg)
7 |
STARTER FREEWHEEL"PIAGGIO GENUINE PART" 125-250 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X-EVO/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY -8477975- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
8 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -000097- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/9/img/69229.JPG)
9 |
842385 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
10 |
NUT - (16X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -563728- More informationQuantity required : 1 |
|||||||||
