Vehicle Exploded View - APRILIA SR 50 H20 New Ditech 04-07
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

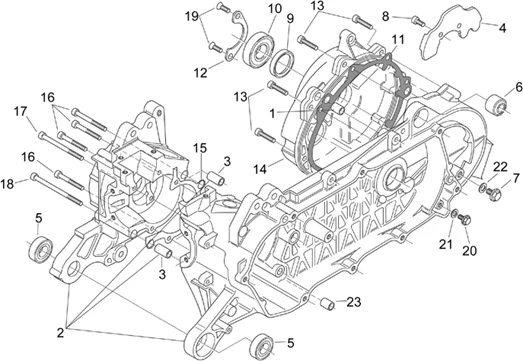

Moteur : 29.35 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/578/SR_50_H20_New_Ditech_04-07_29.35.PNG)
1 |
AP3FCN000269 - GOUPILLE More informationQuantity required : 2 |
||||||
|
2 |
AP1BHA000624 - CARTER - COUPLE More informationQuantity required : 1 |
||||||
|
3 |
AP3FCN000268 - GOUPILLE More informationQuantity required : 2 |
||||||
|
4 |
AP3HAA000044 - PLAQUE TRANSMISSION More informationQuantity required : 1 |
||||||
|
5 |
AP4GAN000083 - ROULEMENT More informationQuantity required : 1 |
||||||
|
6 |
AP3HAN000056 - SILENTBLOC; More informationQuantity required : 1 |
||||||
|
7 |
AP4AUN000011 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
8 |
Vis |
||||||
|
9 |
AP3EBN000047 - JOINT SPI More informationQuantity required : 1 |
||||||
|
10 |
AP4GAN000026 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/8/7/5/img/44875.jpg)
11 |
PAPER GASKET FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" APRILIA 50 SR H2O DITECH, MOJITO, SCARABEO DITECH -AP3NVA000627 More informationQuantity required : 1 |
||||||
|
12 |
AP3HAA000068 - PLAQUE FIXATION PALIER; More informationQuantity required : 1 |
||||||
|
13 |
AP4ADN000016 - VIS More informationQuantity required : 8 |
||||||
|
14 |
COPERCHIO TRASM.FRENO DISCO |
||||||
|
15 |
AP3HVA000160 - JOINT; More informationQuantity required : 1 |
||||||
|
16 |
GU98620355 - VIS M6X60 More informationQuantity required : 4 |
||||||
|
17 |
AP4ADN000178 - VIS More informationQuantity required : 1 |
||||||
|
18 |
AP4ADN000179 - VIS More informationQuantity required : 1 |
||||||
|
19 |
AP4AHN000067 - VIS More informationQuantity required : 2 |
||||||
|
20 |
Vis bride |
||||||
|
21 |
AP9150351 - ROSETTA D6-D12-SP1 More informationQuantity required : 1 |
||||||
|
22 |
Rondelle en aluminium |
||||||
|
23 |
Douille |
