Vehicle Exploded View - APRILIA SR 50 H20 New Ditech 04-07
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

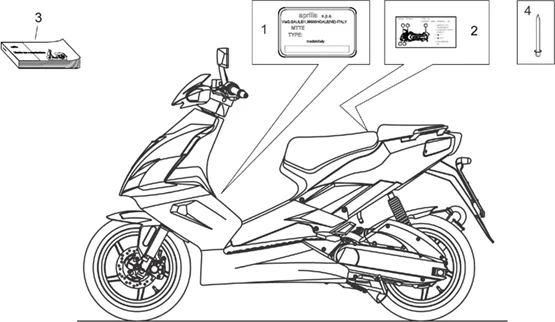

Chassis : 28.33 PLAQUETTE ET MANUEL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/578/SR_50_H20_New_Ditech_04-07_28.33.PNG)
1 |
Plaquette constructeur |
||||||
|
1 |
AP8277485 - TARGHETTA ID.COSTRUTTORE More informationQuantity required : 1 |
||||||
|
1 |
Plaquette constructeur |
||||||
|
1 |
Plaquette constructeur |
||||||
|
1 |
Plaquette constructeur |
||||||
|
2 |
AP8277220 - TARGHETTA ANTIMANOMISSIONE More informationQuantity required : 1 |
||||||
|
2 |
AP8277484 - TARGHETTA ANTIMANOMISSIONE More informationQuantity required : 1 |
||||||
|
3 |
Livret d’util.et entret. |
||||||
|
3 |
Livret d’util.et entret. |
||||||
|
3 |
Livret d’util.et entret. |
||||||
|
3 |
Livret d’util.et entret. |
||||||
|
4 |
AP8201457 - RIVET More informationQuantity required : 2 |
