Vehicle Exploded View - APRILIA SPORT CITY CUBE 200 carb E3 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

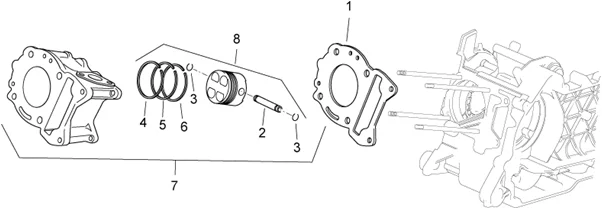

Moteur : 29.42 CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/282/Sport_City_Cube_200_carb_E3_2008-2010_29.42.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/4/img/70574.jpg)
1 |
CYLINDER BASE GASKET (0,04MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875112- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/5/img/70575.jpg)
1 |
CYLINDER BASE GASKET (0,06MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875113- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/6/img/70576.jpg)
1 |
CYLINDER BASE GASKET(0,08MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875114- More informationQuantity required : 1 |
||||||
2 |
829529 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/5/img/66615.jpg)
2 |
PISTON PIN "PIAGGIO GENUINE PART" 125 MP3 2006>2013, X10 2012>2015/ VESPA GTS 2007>2016, VESPA LX 2006>2011 -482335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/2/img/70922.jpg)
3 |
STOP RING FOR PISTON "PIAGGIO GENUINE PART"- LEADER ENGINE 125-250 -963486- More informationQuantity required : 2 |
||||||
|
4 |
843228 - SET SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/2/img/66692.jpg)
4 |
PISTON COMPRESSION RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -485779- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/3/img/66713.jpg)
5 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -486362- More informationQuantity required : 1 |
||||||
|
5 |
843228 - SET SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/7/img/66697.jpg)
6 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -485914- More informationQuantity required : 1 |
||||||
|
6 |
843228 - SET SEGMENT More informationQuantity required : 1 |
||||||
|
7 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" X8 200/ VESPA GT 200/ GILERA RUNNER 200/ APRILIA ATLANTIC 200, SPORT-CITY 200 -843291- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/8/8/img/146188.jpg)
7 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 125 MP3, X-EVO, X9, VESPA GTS/GILERA 125 NEXU/APRILIA 125 ATLANTIC -1A007784- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/3/7/0/5/img/143705.jpg)
8 |
PISTON (CAT-A) "PIAGGIO GENUINE PART" 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 ATLANTIC 2003 -1A0077850A- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/6/1/img/146261.jpg)
8 |
PISTON (CAT-D) "PIAGGIO GENUINE PART" 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4 STROKE 2005>/APRILIA 125 ATLANTIC 2003 -1A0077850D- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/6/1/img/69561.jpg)
8 |
PISTON (CAT-C) "PIAGGIO GENUINE PART" 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4 STROKE 2005>/APRILIA 125 ATLANTIC 2003 -1A0077850C- More informationQuantity required : 1 |
||||||
|
8 |
8432900004 - GROUPE PISTON More informationQuantity required : 1 |
||||||
|
8 |
8432900001 - GROUPE PISTON 2004T/4V More informationQuantity required : 1 |
||||||
|
8 |
8432900002 - GROUPE PISTON 2004T/4V More informationQuantity required : 1 |
||||||
|
8 |
8432900003 - GROUPE PISTOM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/6/2/img/69562.jpg)
8 |
PISTON (CAT-B) "PIAGGIO GENUINE PART" 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4 STROKE 2005>/APRILIA 125 ATLANTIC 2003 -1A0077850B- More informationQuantity required : 1 |
All the exploded views of this vehicle
-
