Vehicle Exploded View - APRILIA SPORT CITY CUBE 200 carb E3 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

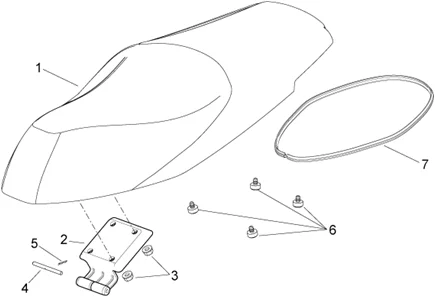

Chassis : 28.14 GROUPE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/282/Sport_City_Cube_200_carb_E3_2008-2010_28.14.PNG)
1 |
86067500A2 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
86067500A1 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
86067500RM - SELLE More informationQuantity required : 1 |
||||||
|
2 |
654467 - ETRIER More informationQuantity required : 1 |
||||||
|
3 |
AP8150333 - ECROU SERPRESS More informationQuantity required : 4 |
||||||
|
4 |
AP8201431 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/8/img/71458.jpg)
5 |
AP8121333 - PIVOT CHARNIERE SELLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/9/img/71749.jpg)
6 |
AP8144089 - CAOUTCHOUC AVANT SELLE; More informationQuantity required : 2 |
||||||
|
7 |
AP8220469 - JOINT COFFRE; More informationQuantity required : 1 |
