Vehicle Exploded View - APRILIA SPORT CITY 125 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

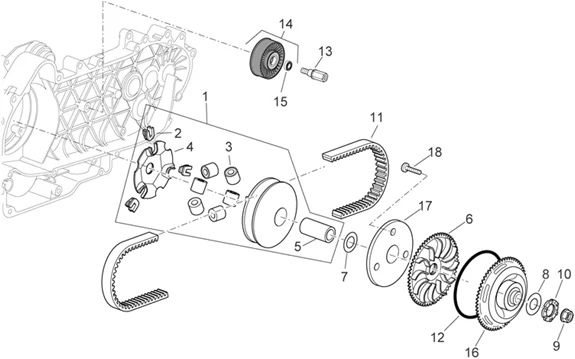

Moteur : 29.55 GROUPE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/278/Sport_City_125_E3_2006-2008_29.55.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/2/1/img/157621.jpg)
0 |
TRANSMISSION KIT"PIAGGIO GENUINE PARTS" BELT,ROLLERS,GUIDES- 125 BEVERLY, CARNABY, X10/APRILIA 125 SCARABEO, SPORT-CITY -1R000450- More informationQuantity required : 1 |
||||||
1 |
DRIVING PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE 250-300 MAXISCOOTER -CM144407- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/3/3/img/73233.jpg)
1 |
DRIVING PULLEY "PIAGGIO GENUINE PART" 125 MP3, BEVERLY, X7, X8, X9, X-EVO, GTS/APRILIA 125 ATLANTIC -CM144403- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
2 |
VARIATOR SLIDING GUIDE "PIAGGIO GENUINE PART" 125 MP3 2007>, X8 2004>, X9 2003>, X-EVO 2007>, FLY 2005>, VESPA LX 2005>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 2005> -4348555- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/5/5/img/69255.jpg)
2 |
VARIATOR SLIDING GUIDE "PIAGGIO GENUINE PART" 250-300 MP3 2006>2018, 250 X7, X8, X9 2005>2008/VESPA 250-300 GTS-GTV 2005>2018 -843028- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/0/4/img/69604.jpg)
3 |
VARIATOR ROLLER "PIAGGIO GENUINE PART" APRILIA 250-300 ATLANTIC/GILERA 250-300 NEXUS/PIAGGIO 250-300 BEVERLY, 300 MP3, YOURBAN, VESPA 300 GTS (14 G) (SOLD PER UNIT) -849480- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/1/img/66691.jpg)
3 |
VARIATOR ROLLER SET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 200 CC -4857135- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/9/img/73079.jpg)
3 |
VARIATOR ROLLER "PIAGGIO GENUINE PART" 125 BEVERLY, X9, MP3, X10, X7, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC, SPORT-CITY, SR-MAX, SCARABEO/GILERA 125 NEXUS, RUNNER (7,4 G) (SET OF 6) -CM1038045- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/0/img/66690.jpg)
4 |
VARIATOR ROLLER CONTRAST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -485710- More informationQuantity required : 1 |
||||||
|
5 |
483889 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
6 |
834774 - DEMI POULIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/6/img/69136.jpg)
6 |
DRIVE PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE 250-300 MAXISCOOTER -840193- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/8/img/69358.jpg)
6 |
DRIVE PULLEY "PIAGGIO GENUINE PART" 125 X-EVO 2007>, X8 2004>, X9 2003>, MP3 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007> -8456075- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/2/img/66462.jpg)
7 |
DRIVING PULLEY WASHER WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -434885- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/6/img/66436.jpg)
8 |
DRIVING PULLEY WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -433391- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
9 |
NUT - FOR IGNITION FLYWHEEL/CLUTCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250 -B015804- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/7/img/68667.jpg)
10 |
KICK STARTER PINION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 -827386- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/6/8/2/img/176682.JPG)
11 |
COURROIE MAXISCOOTER ORIGINE PIAGGIO 125 X10, BEVERLY, CARNABY/APRILIA 125-250 SPORT-CITY, SCARABEO -1A011456- More informationQuantity required : 1 |
||||||
|
11 |
COURROIE MAXISCOOTER ORIGINE PIAGGIO 125 X10, BEVERLY, CARNABY/APRILIA 125-250 SPORT-CITY, SCARABEO -1A011456- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/9/img/69209.jpg)
11 |
BELT "PIAGGIO GENUINE PART" APRILIA 125 SPORT-CITY 2006>2010, SCARABEO 2003> -842011- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/8/img/68838.jpg)
13 |
SCREW - FOR BELT TENSIONING PULLEY "PIAGGIO GENUINE PART" 125-250-300 BEVERLY, CARNABY, 125 X10/APRILIA 125-250 SPORT-CITY, SCARABEO -829326- More informationQuantity required : 1 |
||||||
|
15 |
82577R - ROULEMENT More informationQuantity required : 1 |
||||||
|
16 |
840815 - LIMITEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/3/img/69013.jpg)
17 |
VARIATOR PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 MOTEUR LEADER -832715- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
18 |
015996 - VIS More informationQuantity required : 3 |
