Vehicle Exploded View - APRILIA SPORT CITY 125 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

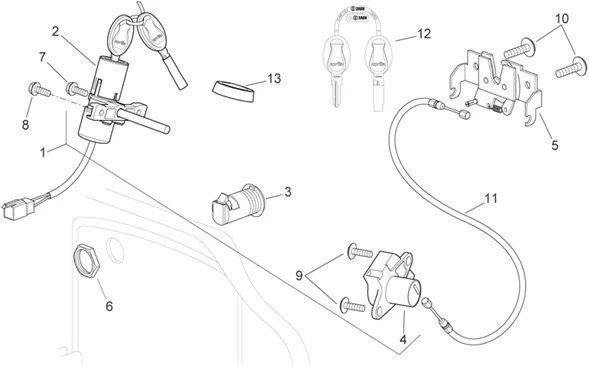

Chassis : 28.42 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/278/Sport_City_125_E3_2006-2008_28.42.PNG)
2 |
AP8590049 - BLOCCHETTO AVV.TO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/3/img/71233.jpg)
3 |
GLOVE BOX LOCK "PIAGGIO GENUINE PART" 50 GULLIVER, MOJITO, 125-250 ATLANTIC, SPORT-CITY -AP8104612- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/2/img/71232.jpg)
4 |
SADDLE LOCK "PIAGGIO GENUINE PART" APRILIA 250 LEONARDO, 125-250-300 ATLANTIC, 125-250 SPORT-CITY -AP8104611- More informationQuantity required : 1 |
||||||
|
5 |
SADDLE LOCK "PIAGGIO GENUINE PART" APRILIA ATLANTIC 125-250 2003>2012, SR 50 2004>2014 -AP8102947- More informationQuantity required : 1 |
||||||
|
6 |
AP8102523 - ECROU SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
7 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
8 |
AP8152140 - VIS A ARRACHEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
9 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
10 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 2 |
||||||
|
11 |
AP8104422 - CABLE SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.JPG)
12 |
AP8104613 - "CLE ""APRILIA"" SANS TRANSPO." More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/1/img/71601.jpg)
13 |
AP8127461 - JOINT BLOC DEMARR. More informationQuantity required : 1 |
