Vehicle Exploded View - MOTO-GUZZI SP 1000 1979-1983
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

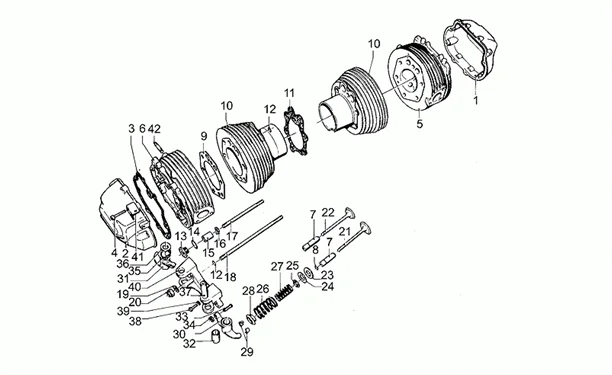

Moteur : 34.19 TÊTE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/513/SP_1000_1979-1983_34.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/1/4/img/129114.jpg)
3 |
ROCKER COVER GASKET "PIAGGIO GENUINE PART" MOTO-GUZZI 850 T3, 1000 SP -GU12023700- More informationQuantity required : 2 |
||||||
4 |
GU98622325 - VIS M6X25 More informationQuantity required : 16 |
||||||
|
7 |
GU13036801 - GUIDE-SOUPAPE PURGE More informationQuantity required : 4 |
||||||
|
8 |
GU90353016 - ANNEAU ELASTIQUE More informationQuantity required : 4 |
||||||
|
9 |
GU18022050 - JOINT TETE CYLINDRE More informationQuantity required : 2 |
||||||
|
11 |
GU14020850 - JOINT BASE CYLINDRE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/8/3/7/img/125837.jpg)
12 |
ROCKER AXLE O'RING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI (2 VALVES ENGINE) -GU90706094- More informationQuantity required : 12 |
||||||
|
13 |
OIL PLUG "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12022600- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
14 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/7/img/129157.jpg)
15 |
NUT - FOR STEERING COLUMN/OR CRANKCASE "PIAGGIO GENUINE PART" PIAGGIO COMMON FOR MOTO-GUZZI RANGE -GU13021900- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
16 |
GU95129180 - RONDELLE 10,5X18X0,8 More informationQuantity required : 2 |
||||||
|
17 |
GU12021800 - VIS SANS TETE More informationQuantity required : 4 |
||||||
|
18 |
976031 - PRIGIONIERO TESTA M10X215 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/8/0/img/129180.jpg)
19 |
GU14018400 - RONDELLE 10,5X21X1 More informationQuantity required : 10 |
||||||
|
20 |
GU92603010 - ECROU M10X1,5 More informationQuantity required : 10 |
||||||
|
21 |
GU29036050 - SOUPAPE D'ADMISSION More informationQuantity required : 2 |
||||||
|
22 |
GU29036150 - SOUPAPE D'ECHAPPEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/2/img/129162.jpg)
23 |
GU13037200 - RONDELLE More informationQuantity required : 4 |
||||||
|
24 |
GU14037300 - RONDELLE More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/1/img/129161.jpg)
25 |
VALVE SPRING RETAINER (LOWER) "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA -GU13037000- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/3/img/129163.jpg)
26 |
VALVE SPRING (EXTERNAL) "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA -GU13037400- More informationQuantity required : 4 |
||||||
|
27 |
VALVE SPRING (INTERNAL) "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA -GU13037600- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/9/1/img/129191.jpg)
28 |
VALVE SPRING RETAINER (UPPER) "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 1000 GT, QUOTA, 850 1000 LE-MANS, 1000 SP, STRADA -GU14038000- More informationQuantity required : 4 |
||||||
|
29 |
GU12038100 - DEMI-CLAVETTE SOUPAPE More informationQuantity required : 8 |
||||||
|
30 |
GU14030201 - CULBUTEUR D.COMPLET More informationQuantity required : 2 |
||||||
|
31 |
GU14030401 - CULBUTEUR G.COMPLET More informationQuantity required : 2 |
||||||
|
32 |
GU91111511 - BAGUE 15X18X43 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/1/1/img/129311.jpg)
33 |
GU17034050 - VIS EMBRAYAGE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/8/7/img/129087.jpg)
34 |
NUT - FOR ADJUSTING VALVES COMMON TO ALL THE RANGE MOTO-GUZZI - FOR 2 VALVES ENGINE -GU10034100- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/7/img/132647.jpg)
35 |
ROCKER SPRING "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU94322215- More informationQuantity required : 4 |
||||||
|
36 |
GU90118152 - RONDELLE More informationQuantity required : 4 |
||||||
|
37 |
GU12031800 - AXE CULBUTEUR More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
38 |
GU98084314 - VIS M6X14 More informationQuantity required : 4 |
||||||
|
39 |
GU95120065 - RONDELLE 6,5X11X2 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/1/7/img/132817.jpg)
42 |
GU96508040 - VIS SANS TETE More informationQuantity required : 4 |
