Vehicle Exploded View - MOTO-GUZZI SP 1000 1979-1983
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

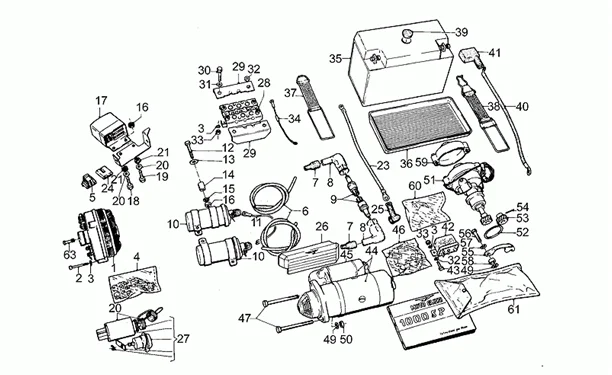

Chassis : 33.01 BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/513/SP_1000_1979-1983_33.01.PNG)
1 |
GU17712400 - ALTERNATEUR More informationQuantity required : 1 |
||||||
|
2 |
GU98620245 - VIS M5X45 More informationQuantity required : 3 |
||||||
|
3 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 9 |
||||||
|
4 |
GU17712454 - PORTE-BALAIS More informationQuantity required : 1 |
||||||
|
5 |
GU61712500 - CONNECTEUR 3 VIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/7/7/img/129377.jpg)
6 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL 2 VALVES MOTO-GUZZI -GU17718350- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
7 |
GU14717600 - CAPUCHON More informationQuantity required : 2 |
||||||
|
8 |
GU14717400 - PIPE BOUGIE More informationQuantity required : 2 |
||||||
|
10 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL 2 VALVES MOTO-GUZZI -GU17718350- More informationQuantity required : 2 |
||||||
|
14 |
GU91180718 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
15 |
GU95000206 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
GU92630106 - ECROU M6X1 More informationQuantity required : 4 |
||||||
|
18 |
GU98054320 - VIS M6X20 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
19 |
GU98084316 - VIS M6X16 More informationQuantity required : 1 |
||||||
|
20 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 2 |
||||||
|
21 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
22 |
GU31735360 - BLOC DEMARREUR More informationQuantity required : 1 |
||||||
|
24 |
GU61712600 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
25 |
GU19707100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
26 |
GU19733350 - PROTECTION DEMMAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
31 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 2 |
||||||
|
32 |
GU95000205 - RONDELLE More informationQuantity required : 4 |
||||||
|
33 |
GU92602205 - ECROU More informationQuantity required : 5 |
||||||
|
34 |
GU17748500 - FILS DE MASSE More informationQuantity required : 1 |
||||||
|
36 |
GU14707000 - PLATEAU DE BATTERIE More informationQuantity required : 1 |
||||||
|
37 |
GU14704800 - COURROIE More informationQuantity required : 1 |
||||||
|
38 |
GU14705500 - ELASTIQUE DE FIXATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
39 |
GU93180220 - BOUCHON More informationQuantity required : 1 |
||||||
|
42 |
GU19732500 - RELAIS DEMARRAGE More informationQuantity required : 1 |
||||||
|
43 |
GU98054214 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/4/4/img/130944.jpg)
44 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" VALEO FOR MOTO-GUZZI -GU30730711- More informationQuantity required : 1 |
||||||
|
45 |
GU14730558 - INTERRUPTEUR A CLE More informationQuantity required : 1 |
||||||
|
46 |
GU14730570 - KIT DE DEMARREUR More informationQuantity required : 1 |
||||||
|
49 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
50 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 1 |
||||||
|
55 |
GU14715700 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
56 |
GU98052430 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
57 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
|
60 |
MAINTENANCE KIT-CONTACT BREAKER+CONDENSER "PIAGGIO GENUINE PART" MOTO-GUZZI BEFORE 2000> -GU14719800- More informationQuantity required : 1 |
||||||
|
63 |
GU14712459 - VIS More informationQuantity required : 1 |
