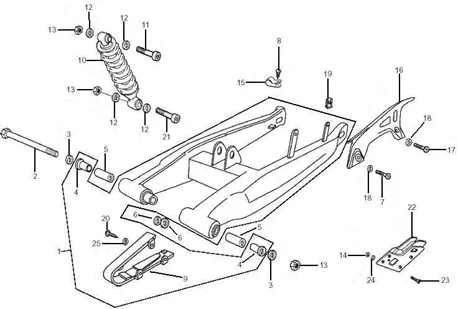

Vehicle Exploded View - GILERA SMT 50 2006

	P2R reference	64234
	Maker reference	00H003089715

00H003089715 - BRAS OSCILLANT

	P2R reference	64484
	Maker reference	00H013042025

REAR WHEEL AXLE/SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> APRILIA 50 SX, RX 2006> Ø 12 MM -00H013042025-

	P2R reference	68489
	Maker reference	000031123225

709037 - RONDELLE

	P2R reference	68489
	Maker reference	709037

709037 - RONDELLE

	P2R reference	63630
	Maker reference	000025032305

SPACER- FOR SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002503230-

	P2R reference	64217
	Maker reference	00H00301401

SPACER- FOR SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00301401-

	P2R reference	63879
	Maker reference	00D01300192

WASHER FOR MOTOR SUPPORT AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01300192-

	P2R reference	66547
	Maker reference	478171

SCREW - FOR HEADLIGHT FASTENING (6X100) "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, MANA -478171-

	P2R reference	64620
	Maker reference	00H01803331

CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT 2003>, RCR 2003>/APRILIA 50 SX-RX 2006> -00H01803331-

	P2R reference	64558
	Maker reference	00H01508191

00H01508191 - AMORTISSEUR

	P2R reference	64230
	Maker reference	00H00303892

00H00303892 - BOULON TETE HEX. M12 175X58

	P2R reference	63633
	Maker reference	000031154225

00003115422 - ROND. PLATE MECANISSE

	P2R reference	63716
	Maker reference	000231120005

NUT - SAFETY NUT FOR SUPENSION ARM (12X175) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00023112000-

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	70054
	Maker reference	864454

FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454-

	P2R reference	64557
	Maker reference	00H01508181

CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01508181-

	P2R reference	63704
	Maker reference	000121616005

SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600-

	P2R reference	63876
	Maker reference	00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171-

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	63687
	Maker reference	000111413005

SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300-

	P2R reference	64216
	Maker reference	00H00300912

00H00300912 - VIS FIXATION AMORTISSEUR

	P2R reference
	Maker reference	00H01502871

GUIDE CHAINE

	P2R reference	66547
	Maker reference	478171

SCREW - FOR HEADLIGHT FASTENING (6X100) "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, MANA -478171-

	P2R reference	65635
	Maker reference	031059

031059 - BOULON S03105900

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-
