Vehicle Exploded View - GILERA SMT 50 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

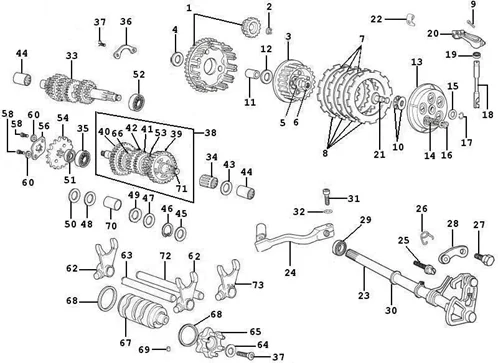

Moteur : 01.31 COMPOSANTS DE LA BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/6/5/img/66965.jpg)
1 |
CLUTCH DRUM "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 SX 2006>, RX 2006>, RS 2006>/DERBI 50 SENDA 2006> (NEEDS PINION FOR EURO 2 MODEL) -497643- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/0/img/69490.jpg)
2 |
STEPPED NUT - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847217- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/8/img/69428.jpg)
3 |
CLUTCH PRESSURE PLATE"PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847045- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/1/img/69491.jpg)
4 |
CLUTCH WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, RS -847218- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/0/8/img/70608.jpg)
5 |
CLUTCH LOCKING WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/DERBI 50 SENDA, GPR -876418- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/2/img/69492.jpg)
6 |
NUT - FOR CLUTCH NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -847221- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/6/img/69426.jpg)
7 |
DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, TUONO, SX, RX -847043- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/7/img/69427.jpg)
8 |
DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847044- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
9 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/3/img/69493.jpg)
10 |
CLUTCH PLATE BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847222- More informationQuantity required : 1 |
|||||||||
|
11 |
CLUTCH DRUM "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 SX 2006>, RX 2006>, RS 2006>/DERBI 50 SENDA 2006> (NEEDS PINION FOR EURO 2 MODEL) -497643- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/5/img/69425.jpg)
12 |
CLUTCH WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847042- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/2/1/6/img/187216.JPG)
12 |
1A009075 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/9/img/69429.jpg)
13 |
CLUTCH COLLAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50-125 RS4 2011>, 50 SX, RX 2006>, 125 SX, RX 2018> -847046- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/0/img/69430.jpg)
14 |
CLUTCH PLATE SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847047- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/5/img/69495.jpg)
15 |
WASHER FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847224- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/1/img/69431.jpg)
16 |
SCREW - FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847048- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/2/img/63602.jpg)
17 |
CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/6/img/69456.jpg)
18 |
CLUTCH OUTPUT SHAFT "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX, RS -847083- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
19 |
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/7/0/img/73270.jpg)
20 |
CLUTCH RELEASE SHAFT "PIAGGIO GENUINE PART" 50 APRILIA RS4 2011> -CM151201- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/4/img/69494.jpg)
21 |
CLUTCH END PIN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS, TUONO -847223- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/0/img/69460.jpg)
22 |
CLUTCH CABLE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847090- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/5/4/5/img/176545.JPG)
23 |
1A0043546 - COMPLETE DRIVE GEAR BOX More informationQuantity required : 1 |
|||||||||
|
23 |
1A0043546 - COMPLETE DRIVE GEAR BOX More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/2/7/img/64727.jpg)
24 |
GEARBOX SELECTOR "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H027034215- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/2/6/8/img/142268.jpg)
25 |
SCREW - FOR GEARBOX SELECTOR RETURN SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -B017981- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/0/img/149170.jpg)
26 |
GEARBOX SELECTOR SPRING "PIAGGIO GENUINE PART" GILERA/APRILIA -1A010665- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/1/img/149171.jpg)
28 |
GEAR ARREST LEVER (INTERNAL) "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -1A010685- More informationQuantity required : 1 |
|||||||||
|
29 |
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/8/img/69498.jpg)
30 |
GEARBOX SELECTOR AXLE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847228- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
31 |
AP8150165 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/0/img/63790.jpg)
32 |
00442060002 - RONDELLE A RESSORT D6 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/7/img/69417.jpg)
33 |
GEARBOX SHAFT - PRIMARY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2010>/APRILIA 50 SX, RX, RS 2010> -847027- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/6/img/69526.jpg)
34 |
ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847544- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/8/img/69458.jpg)
35 |
BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847086- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/9/2/9/img/205929.JPG)
35 |
8470866 - BEARING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/4/img/69414.jpg)
36 |
PLATE FOR GEARBOX BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847021- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/9/img/127169.jpg)
37 |
SCREW - FOR GEARBOX "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -1A003116- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/8/img/69418.jpg)
38 |
GEARBOX SHAFT (SECONDARY-COMPLETE) "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX/GILERA 50 SMT, RCR - 847028 - More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/8/img/69468.JPG)
39 |
1ST WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847153- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/2/img/69472.JPG)
40 |
2 ND WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847157- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/0/img/69470.jpg)
41 |
3 RD WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847155- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/1/img/69471.jpg)
42 |
4 ST WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847156- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/3/1/img/69531.jpg)
43 |
SECONDARY SHAFT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847549- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/5/img/69485.jpg)
44 |
ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -847211- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/1/6/img/146216.jpg)
45 |
871708 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/5/img/69525.jpg)
46 |
SAFETY WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847542- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/3/0/img/69530.jpg)
47 |
847548 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/4/img/69524.jpg)
48 |
847541 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/8/img/69528.jpg)
49 |
847546 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/7/img/69527.jpg)
50 |
SECONDARY SHAFT WASHER (1,2X17X28) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS, TUONO -847545- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/2/img/69412.jpg)
51 |
GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/3/img/69483.jpg)
52 |
BEARING FOR GEARBOX PRIMARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -847209- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/9/img/69469.JPG)
53 |
5 TH WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847154- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/2/2/img/69922.jpg)
54 |
GEARBOX OUPUT SPROCKET "PIAGGIO GENUINE PART" 50 A BOITE GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 RS 2006>, RS4 2011>, RX 2006>, SX 2006> 11 TEETH -86177R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/3/2/img/64732.jpg)
56 |
STEERING LOCK WASHER FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" GILERA RCR, SMT 2006>/APRILIA 50 RS4 2011>, RS, RX, SX 2006> -00H02800421- More informationQuantity required : 1 |
|||||||||
56 |
863136 - AXE A CAMES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
58 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/8/img/63598.jpg)
60 |
STEERING LOCK WASHER FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -00000033040- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/5/img/68935.jpg)
62 |
GEARBOX FORK- 2ND GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -83073R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/0/img/69420.JPG)
63 |
847030 - AXE FOURCHE 2ERE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/7/img/69487.jpg)
64 |
GEARBOX SELECTOR WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847214- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/3/img/69423.jpg)
65 |
SHIFT CAM PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -847038- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/3/img/69473.JPG)
66 |
6 TH WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847158- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/3/5/0/img/157350.JPG)
67 |
1A011714 - TAMBOUR DESMOD. More informationQuantity required : 1 |
|||||||||
|
67 |
1A011714 - TAMBOUR DESMOD. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/2/img/69422.jpg)
68 |
GEAR SELECTOR WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847036- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/6/img/69486.jpg)
69 |
ROLLER FOR GEARBOX CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847213- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/9/img/69529.JPG)
70 |
847547 - BAGUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/4/img/69474.jpg)
71 |
GEARBOX SHAFT - SECONDARY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847159- More informationQuantity required : 1 |
|||||||||
|
72 |
BEARING FOR GEARBOX PRIMARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -847209- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/4/img/68934.jpg)
73 |
GEARBOX FORK- 1ST GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -83072R- More informationQuantity required : 1 |
|||||||||
All the exploded views of this vehicle
-
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006.PNG)
-
01.05 Carter
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.05.PNG)
-
01.06 Vilebrequin
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.06.PNG)
-
01.07 Groupe cylindre-piston-axe
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.07.PNG)
-
01.10 Ensemble culasse - Soupape
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.10.PNG)
-
01.18 Pompe à huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.18.PNG)
-
01.19 Pompe à eau
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.19.PNG)
-
01.20 Démarrage - Démarrage électrique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.20.PNG)
-
01.21 Volant magnetique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.21.PNG)
-
01.31 Composants de la boîte de vitesses
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.31.PNG)
-
01.40 Composants de carburateur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.40.PNG)
-
01.42 Silencieux
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.42.PNG)
-
01.45 Filtre à air
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.45.PNG)
-
02.01 Châssis/coque
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.01.PNG)
-
02.25 Béquille/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.25.PNG)
-
02.32 Couvertures laterales - Spoiler
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.32.PNG)
-
02.33 Logement roue - Garde boue
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.33.PNG)
-
02.39 Selle/sieges - Trousse à outils
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.39.PNG)
-
02.45 Rétroviseur/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.45.PNG)
-
02.47 Réservoir carburant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.47.PNG)
-
02.52 Réservoir huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.52.PNG)
-
02.55 Instalation de refoidissement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.55.PNG)
-
03.02 Groupe instruments - Cruscotto
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_03.02.PNG)
-
03.06 Guidon - Maître cylindre
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_03.06.PNG)
-
04.02 Fourche/tube direction - Ensemble butée dir.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_04.02.PNG)
-
04.10 Suspension arrière - Amortisseur/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_04.10.PNG)
-
04.11 Roue avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_04.11.PNG)
-
04.12 Roue arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_04.12.PNG)
-
05.01 Tuyaus du freins - Etriers de frein
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_05.01.PNG)
-
05.03 Transmissions
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_05.03.PNG)
-
05.04 Système de freinage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_05.04.PNG)
-
06.01 Inverseurs - Commutateurs - Boutons - Interrupteurs
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.01.PNG)
-
06.03 Eclairages avant - Clignotants
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.03.PNG)
-
06.04 Eclairages arrière - Clignotants
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.04.PNG)
-
06.05 Relais - Batterie - Avertisseur sonore
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.05.PNG)
-
06.06 Régulateurs de tension - Centrales electroniques - Bobine H.T.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.06.PNG)
-
06.08 Faisceau de câbles principal
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.08.PNG)
