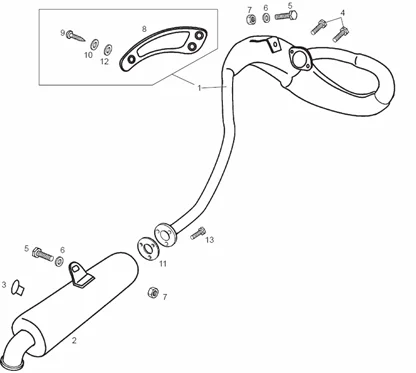

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-RACE 2007 E2 3ed DERBI

Moteur : 12 GROUPE ECHAPPEMENT
Groupe echappement
Search
00H03446081 - ENSEMBLE TUBE DIECHAPPEMENT

1
P2R reference P2R reference 64803
Maker reference Maker reference 00H03446081

00H03446081 - ENSEMBLE TUBE DIECHAPPEMENT

More information

Quantity required : 1
862964 - POT D'ECHAPPEMENT COMPLET

1
P2R reference P2R reference 69985
Maker reference Maker reference 862964

862964 - POT D'ECHAPPEMENT COMPLET

More information

Quantity required : 1
86126R - SILENCIEUX DIECHAPPEMENT

2
P2R reference P2R reference 69845
Maker reference Maker reference 86126R

86126R - SILENCIEUX DIECHAPPEMENT

More information

Quantity required : 1
00G01500951 - APPUI BEQUILLE LATERALE

3
P2R reference P2R reference 63988
Maker reference Maker reference 00G01500951

00G01500951 - APPUI BEQUILLE LATERALE

More information

Quantity required : 1
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044-

4
P2R reference P2R reference 71815
Maker reference Maker reference AP8150044

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044-

More information

Quantity required : 1
00012081621 - VISA TETE HEXAG.8M125X16

5
P2R reference P2R reference 63699
Maker reference Maker reference 000120816215

00012081621 - VISA TETE HEXAG.8M125X16

More information

Quantity required : 1
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001-

6
P2R reference P2R reference 63787
Maker reference Maker reference 004020800015

ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001-

More information

Quantity required : 1
NUT - SAFETY NUT (8x125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

7
P2R reference P2R reference 63715
Maker reference Maker reference 000231080005

NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

More information

Quantity required : 1
EXHAUST PROTECTION - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H01800402-

8
P2R reference P2R reference 64603
Maker reference Maker reference 00H01800402

EXHAUST PROTECTION - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H01800402-

More information

Quantity required : 1
00000012415 - VIS

9
P2R reference P2R reference 63580
Maker reference Maker reference 000000124155

00000012415 - VIS

More information

Quantity required : 1
00F04201361 - RONDELLE

10
P2R reference P2R reference 63922
Maker reference Maker reference 00F04201361

00F04201361 - RONDELLE

More information

Quantity required : 1
EXHAUST GASKET- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H03404321-

11
P2R reference P2R reference 64792
Maker reference Maker reference 00H03404321

EXHAUST GASKET- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H03404321-

More information

Quantity required : 1
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181-

12
P2R reference P2R reference 69480
Maker reference Maker reference 847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181-

More information

Quantity required : 1
00D05910081 - VIS

13
P2R reference P2R reference 63895
Maker reference Maker reference 00D05910081

00D05910081 - VIS

More information

Quantity required : 1
