Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-RACE 2007 E2 3ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

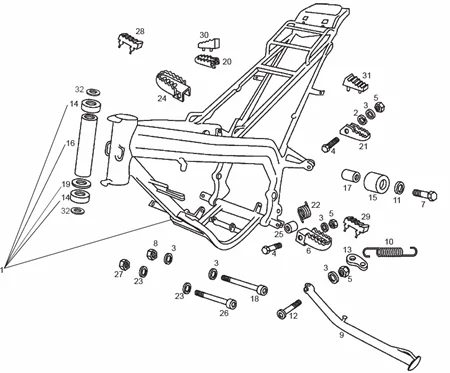

Châssis - parties plastiques - carrosseries : 1 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1043/SENDA_SM_X-RACE_2007_E2_3ed_1.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/2/9/img/64629.jpg)
1 |
FRAME "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 - 00H019616015 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
3 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/3/img/63713.jpg)
4 |
SCREW - FOR FOOTREST M8X40 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00022084021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
5 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/7/img/64667.jpg)
6 |
LEFT RIDER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H02201312- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/0/img/72730.jpg)
7 |
SCREW 8X45 FOR CHAIN GUIDE "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -B016805- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/7/img/63767.jpg)
8 |
00262080022 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/2/0/img/64320.jpg)
9 |
SIDE STAND "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006> -00H00820011A- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/5/img/64315.jpg)
10 |
SPRING - FOR STAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00804081- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/9/img/63639.jpg)
11 |
00003306570 - RONDELLE FIX BOITE A OUTILS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/6/img/64316.jpg)
12 |
SCREW - FOR STAND FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00805072- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/0/img/64310.jpg)
13 |
STAND SPRING PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -2B004468- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/6/img/63606.jpg)
14 |
STEERING COLUMN BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00000056205- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/1/4/img/64614.jpg)
15 |
CHAIN GUIDE WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H01801771- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/8/img/65038.jpg)
16 |
STEERING PIPE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H06301401- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/1/img/63631.jpg)
17 |
SPACER- FOR CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002518790- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/4/img/64704.jpg)
18 |
SCREW - ENGINE FIXING SCREW M8 "PIAGGIO GENUINE PART" 50 VESPA LX, PRIMAVERA, SPRINT/GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02500272- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/4/8/img/65048.jpg)
19 |
00H06500451 - RONDELLE COUSSINET TUBE DIRECT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/4/img/63884.jpg)
20 |
RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01520096- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/5/img/63885.jpg)
21 |
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01520456- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/4/img/64954.jpg)
22 |
RIDER FOOTREST SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H04903292- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/9/img/63789.jpg)
23 |
WASHER FOR MOTOR SUPPORT AXLE D10.5 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00402100001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/6/img/64666.jpg)
24 |
RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H02201302- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/8/img/63628.jpg)
25 |
RING FOR FOOTREST LINK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RX, SX -00002215152- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/8/img/64748.jpg)
26 |
SCREW - ENGINE FIXING SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03000272- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
27 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/8/img/64538.jpg)
28 |
RIGHT/LEFT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H01502101- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/6/img/64536.jpg)
29 |
00H01501501 - REPOSE-PIED GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/2/img/64542.JPG)
30 |
00H01503101 - PROTECTEUR REPOSE-PIED DROI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/0/img/64540.jpg)
31 |
00H01502501 - PROTECTEUR REPOSE-PIED GAUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/2/img/63672.jpg)
32 |
STEERING FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00008902630- More informationQuantity required : 1 |
