Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD RACING LTD EDITION 2005 E2 2ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

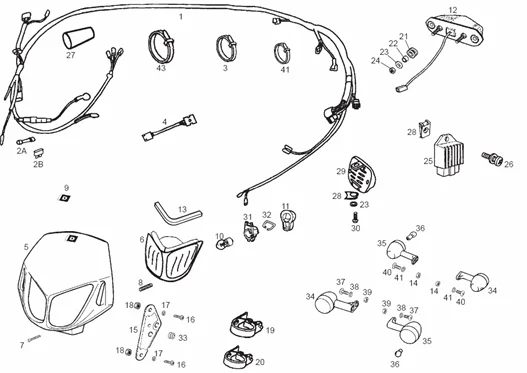

Tables : 7 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1034/SENDA_SM_DRD_RACING_LTD_EDITION_2005_E2_2ed_7.png)
1 |
00H01040301 - FAISCEAU ELECTRIQUE More informationQuantity required : 1 |
||||||
|
2 |
00G01000911 - FUSIBLE 4 AH. More informationQuantity required : 1 |
||||||
|
2 |
00H01001911 - FUSIBLE More informationQuantity required : 1 |
||||||
|
3 |
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/7/img/64997.jpg)
4 |
DASHBOARD TIMER "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H05700481- More informationQuantity required : 1 |
||||||
|
5 |
00H02243371C5 - PLAQUE PHARE More informationQuantity required : 1 |
||||||
|
6 |
00H01013011 - OPTIQUE COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/2/img/63692.jpg)
7 |
00012045000 - VIS 4M70X50 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/9/1/img/64691.jpg)
8 |
HEADLIGHT ADJUSTMENT SPRING "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H02304501- More informationQuantity required : 1 |
||||||
|
9 |
00H01536321 - DECAL DE PLAQUE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
10 |
LIGHT BULB FOR HEADLAMP 12V-35/35W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -219528- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/3/img/65003.jpg)
11 |
HEAD LAMP BULB PROTECTION "PIAGGIO GENUINE PART" 50 SMT, RCR/APRILIA 50 RX, SX -00H05703141- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/6/img/64386.jpg)
12 |
TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H01009321- More informationQuantity required : 1 |
||||||
|
13 |
00H05700101 - BUTEE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
14 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/5/img/64545.jpg)
15 |
FORK HEAD SUPPORT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1995>2003 -00H01503741- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/3/img/63693.jpg)
16 |
00012051200 - VIS T.RONDE CROIX 5M80X12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
17 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181- More informationQuantity required : 1 |
||||||
|
18 |
00026005000 - ECROU HEXAG.A/BRIDE 5M80 D6923 More informationQuantity required : 1 |
||||||
|
19 |
00H04606841 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
20 |
00H04604841 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
21 |
SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/2/img/63882.jpg)
22 |
SPACER-RING NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00D01500471- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
23 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
|
24 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/5/img/64385.jpg)
25 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" GILERA 50 GPR -00H01007841- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
26 |
SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/4/img/64684.jpg)
27 |
PROTECTION FOR ELECTRIC BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H02300961- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
28 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/2/img/64382.jpg)
29 |
HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
30 |
00012061200 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/1/img/63641.jpg)
31 |
BULB HOLDER - FOR HEADLAMP - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710110- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/2/img/63642.jpg)
32 |
SPRING FOR BULB HOLDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710120- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/9/img/64999.jpg)
33 |
00H05701061 - CAOUTCHOUC PASSE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/9/8/img/64598.jpg)
34 |
00H01706021 - GLIGNOTEURS AR. DROITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/9/7/img/64597.JPG)
35 |
00H01704311 - CLIGNOTANTS AR. GAUCHE More informationQuantity required : 1 |
||||||
|
36 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 1 |
||||||
|
37 |
00008063000 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/6/img/63726.JPG)
38 |
00031106000 - RONDELLE PLATE D6 More informationQuantity required : 1 |
||||||
|
39 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/4/img/63664.jpg)
40 |
00008061500 - VIS A TETE RONDE 6M100X16 More informationQuantity required : 1 |
||||||
|
41 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
|
42 |
00A00900531 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
43 |
00F00900531 - COLLIER More informationQuantity required : 1 |
