Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD RACING LTD EDITION 2005 E2 2ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

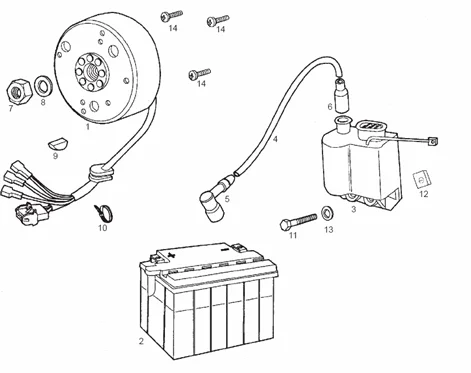

Tables : 20 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1034/SENDA_SM_DRD_RACING_LTD_EDITION_2005_E2_2ed_20.png)
1 |
00H03311011 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
2 |
234390 - BATTERIE 12V/4 AH YUASA YB4L-B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/8/7/img/64787.jpg)
3 |
IGNITION COIL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM/APRILIA 50 RS, RX, SX -00H03330171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
4 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/3/img/64083.jpg)
5 |
00G03301271 - PIPE DE BOUGIE More informationQuantity required : 1 |
||||||
|
6 |
00F03300731 - CAPUCHON More informationQuantity required : 1 |
||||||
|
7 |
00H03300221 - ECROU FIXE VOLANT More informationQuantity required : 1 |
||||||
|
8 |
00F03300241 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/8/img/69488.jpg)
9 |
WOODRUFF KEY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -847215- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
10 |
00F00900531 - COLLIER More informationQuantity required : 1 |
||||||
|
11 |
00012162000 - BOULON TETE HEX.5M80X15 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
13 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/1/img/69501.jpg)
14 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -847233- More informationQuantity required : 1 |
