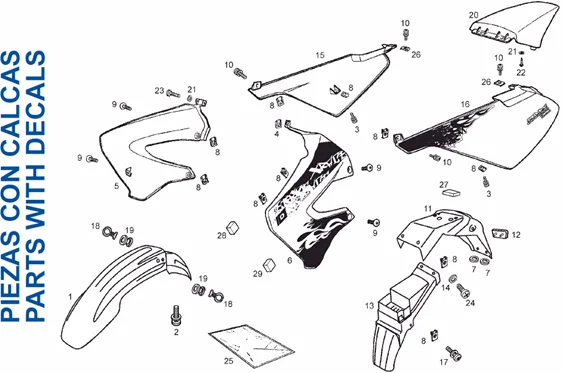

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM 50 X-Race 2ver E2 2007-2009 (EMEA) DERBI

Châssis - parties plastiques - carrosseries : 05B CARROSSERIE
Carrosserie
Search
00H00713023 - GARDE-BOUE AVANT

1
P2R reference P2R reference 64305
Maker reference Maker reference 00H00713023

00H00713023 - GARDE-BOUE AVANT

More information

Quantity required : 1

00H00723021 - GARDE-BOUE AV.

1
P2R reference P2R reference 188410
Maker reference Maker reference 00H00723021

00H00723021 - GARDE-BOUE AV.

More information

Quantity required : 1

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

2
P2R reference P2R reference 65008
Maker reference Maker reference 00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

More information

Quantity required : 1

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

3
P2R reference P2R reference 65008
Maker reference Maker reference 00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

4
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

More information

Quantity required : 1

00H04410771 - COUVERCLE AVANT

5
P2R reference P2R reference 188411
Maker reference Maker reference 00H04410771

00H04410771 - COUVERCLE AVANT

More information

Quantity required : 1

86570701W0N5 - COUVERTURE AV.DRT.

5
P2R reference P2R reference 188455
Maker reference Maker reference 86570701W0N5

86570701W0N5 - COUVERTURE AV.DRT.

More information

Quantity required : 1

86570800W0N5 - COUVERTURE AV.GAU.

6
P2R reference P2R reference 188456
Maker reference Maker reference 86570800W0N5

86570800W0N5 - COUVERTURE AV.GAU.

More information

Quantity required : 1

00H04410781 - COUVERCLE AVANT G.

6
P2R reference P2R reference 188412
Maker reference Maker reference 00H04410781

00H04410781 - COUVERCLE AVANT G.

More information

Quantity required : 1

WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239

7
P2R reference P2R reference 69844
Maker reference Maker reference 861239

WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239

More information

Quantity required : 1

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

8
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

9
P2R reference P2R reference 63992
Maker reference Maker reference 00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

More information

Quantity required : 1

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

10
P2R reference P2R reference 63923
Maker reference Maker reference 00F05900041

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

More information

Quantity required : 1

MUDGUARD - REAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00712341

11
P2R reference P2R reference 64299
Maker reference Maker reference 00H00712341

MUDGUARD - REAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00712341

More information

Quantity required : 1

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752

12
P2R reference P2R reference 64118
Maker reference Maker reference 00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752

More information

Quantity required : 1

REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H00712341

13
P2R reference P2R reference 64293
Maker reference Maker reference 00H00705121

REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H00712341

More information

Quantity required : 1

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171

14
P2R reference P2R reference 63876
Maker reference Maker reference 00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171

More information

Quantity required : 1

00H00505074 - TAPA LAT.DR.SENDA SM NEGRA

15
P2R reference P2R reference 187510
Maker reference Maker reference 86570300W0N5

00H00505074 - TAPA LAT.DR.SENDA SM NEGRA

More information

Quantity required : 1

86570301W0N5 - COUVERTURE LAT.ARR.DRT.

15
P2R reference P2R reference 188414
Maker reference Maker reference 86570301W0N5

86570301W0N5 - COUVERTURE LAT.ARR.DRT.

More information

Quantity required : 1

00H00505074 - TAPA LAT.DR.SENDA SM NEGRA

15
P2R reference P2R reference 187510
Maker reference Maker reference 00H00505074

00H00505074 - TAPA LAT.DR.SENDA SM NEGRA

More information

Quantity required : 1

00H00505084 - TAPA LAT.IZ.SENDA SM 2000 NEGR

16
P2R reference P2R reference 188415
Maker reference Maker reference 00H00505084

00H00505084 - TAPA LAT.IZ.SENDA SM 2000 NEGR

More information

Quantity required : 1

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

17
P2R reference P2R reference 65008
Maker reference Maker reference 00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

More information

Quantity required : 1

FRONT BRAKE CABLE FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H02201591

18
P2R reference P2R reference 64668
Maker reference Maker reference 00H02201591

FRONT BRAKE CABLE FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H02201591

More information

Quantity required : 1

RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021

19
P2R reference P2R reference 63881
Maker reference Maker reference 00D01500021

RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021

More information

Quantity required : 1

REAR MUDGUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> BLACK -00H00608164

20
P2R reference P2R reference 64285
Maker reference Maker reference 00H00608164

REAR MUDGUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> BLACK -00H00608164

More information

Quantity required : 1

00H00609164 - COUVRE-SELLE

20
P2R reference P2R reference 188416
Maker reference Maker reference 00H00609164

00H00609164 - COUVRE-SELLE

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226

21
P2R reference P2R reference 69496
Maker reference Maker reference 847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226

More information

Quantity required : 1

SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401

22
P2R reference P2R reference 63681
Maker reference Maker reference 000110514015

SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401

More information

Quantity required : 1

SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000

23
P2R reference P2R reference 63703
Maker reference Maker reference 000121520005

SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000

More information

Quantity required : 1

00012061200 - VIS A TETE RONDE A FENTES C

24
P2R reference P2R reference 63696
Maker reference Maker reference 000120612005

00012061200 - VIS A TETE RONDE A FENTES C

More information

Quantity required : 1

00H00501761 - SILENTBLOC

26
P2R reference P2R reference 188284
Maker reference Maker reference 00H00501761

00H00501761 - SILENTBLOC

More information

Quantity required : 1

00H05900621 - ESPUMA ADHESIVA DE 5MMX360MM

27
P2R reference P2R reference 188419
Maker reference Maker reference 00H05900621

00H05900621 - ESPUMA ADHESIVA DE 5MMX360MM

More information

Quantity required : 1

890512 - EPONGE ADHESIVE 15X8

28
P2R reference P2R reference 41728
Maker reference Maker reference 890512

890512 - EPONGE ADHESIVE 15X8

More information

Quantity required : 1

AP8117041 - EPONGE ADHESIVE;

29
P2R reference P2R reference 71346
Maker reference Maker reference AP8117041

AP8117041 - EPONGE ADHESIVE;

More information

Quantity required : 1
