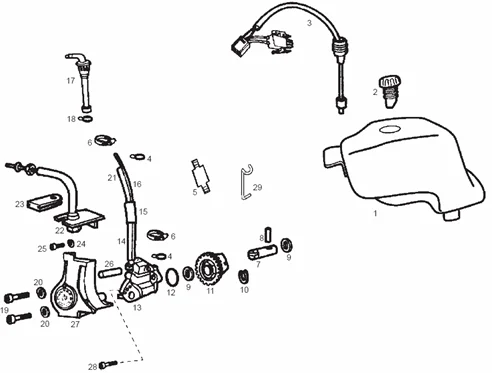

Tables : 22 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_22.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/2/6/img/64826.jpg)
1 |
OIL TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H03704081- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/1/9/img/63919.jpg)
2 |
OIL TANK CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00F03710241- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/3/8/img/70338.jpg)
3 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR/APRILIA 50 SX, RX 2006> -867531- More informationQuantity required : 1 |
||||||
4 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/9/8/img/64098.jpg)
5 |
00G03701031 - RACCORD ENTREE DIHUILE More informationQuantity required : 1 |
||||||
|
6 |
00H03700211 - BRIDE TUYAU D'HUILE More informationQuantity required : 1 |
||||||
|
7 |
00H03700101 - AXE DE POMPE D,HUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/4/0/img/63740.jpg)
8 |
00053030000 - GOUDILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/5/img/69495.jpg)
9 |
WASHER FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847224- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/2/img/63602.jpg)
10 |
CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/7/img/64837.jpg)
11 |
OIL PUMP PINION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K, ZULU -00H03800381- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/1/6/img/64816.jpg)
12 |
00H03701041 - JOINT More informationQuantity required : 1 |
||||||
|
13 |
00H03701021 - POMPE A HUILLE More informationQuantity required : 1 |
||||||
|
14 |
00H00400781 - TUYAU DIHUILE More informationQuantity required : 1 |
||||||
|
15 |
00H03700351 - MANCHON RACCORD TUYEAU DIHU More informationQuantity required : 1 |
||||||
|
16 |
00H03701121 - TUYAU D'HUILE More informationQuantity required : 1 |
||||||
|
17 |
00H03701411 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
18 |
00008204500 - COLLIER COBRA 21/8 W4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/6/img/63616.jpg)
19 |
00002054551 - VIS T. CREUSE More informationQuantity required : 1 |
||||||
|
20 |
00000033050 - RONDELLE GROWER D5 D127 More informationQuantity required : 1 |
||||||
|
21 |
00F00403321 - TUBE ESSENCE More informationQuantity required : 1 |
||||||
|
22 |
00H03700311 - SOUS-ENS SUPPORT CABLE HUIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/1/0/img/64810.jpg)
23 |
00H03700141 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
24 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/7/img/63567.jpg)
25 |
SCREW - FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" APRILIA RS 50-125 2006>2018, RX-SX 2006>2016 -00000004510- More informationQuantity required : 1 |
||||||
|
26 |
00H03700341 - ENTRETOISE COUVERCLE DE POM More informationQuantity required : 1 |
||||||
|
27 |
00H03705011 - COUVERCLE DE POMPE A HUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/7/img/69497.jpg)
28 |
847227 - BOULON More informationQuantity required : 1 |
||||||
|
29 |
00H03700201 - RESSORT More informationQuantity required : 1 |
